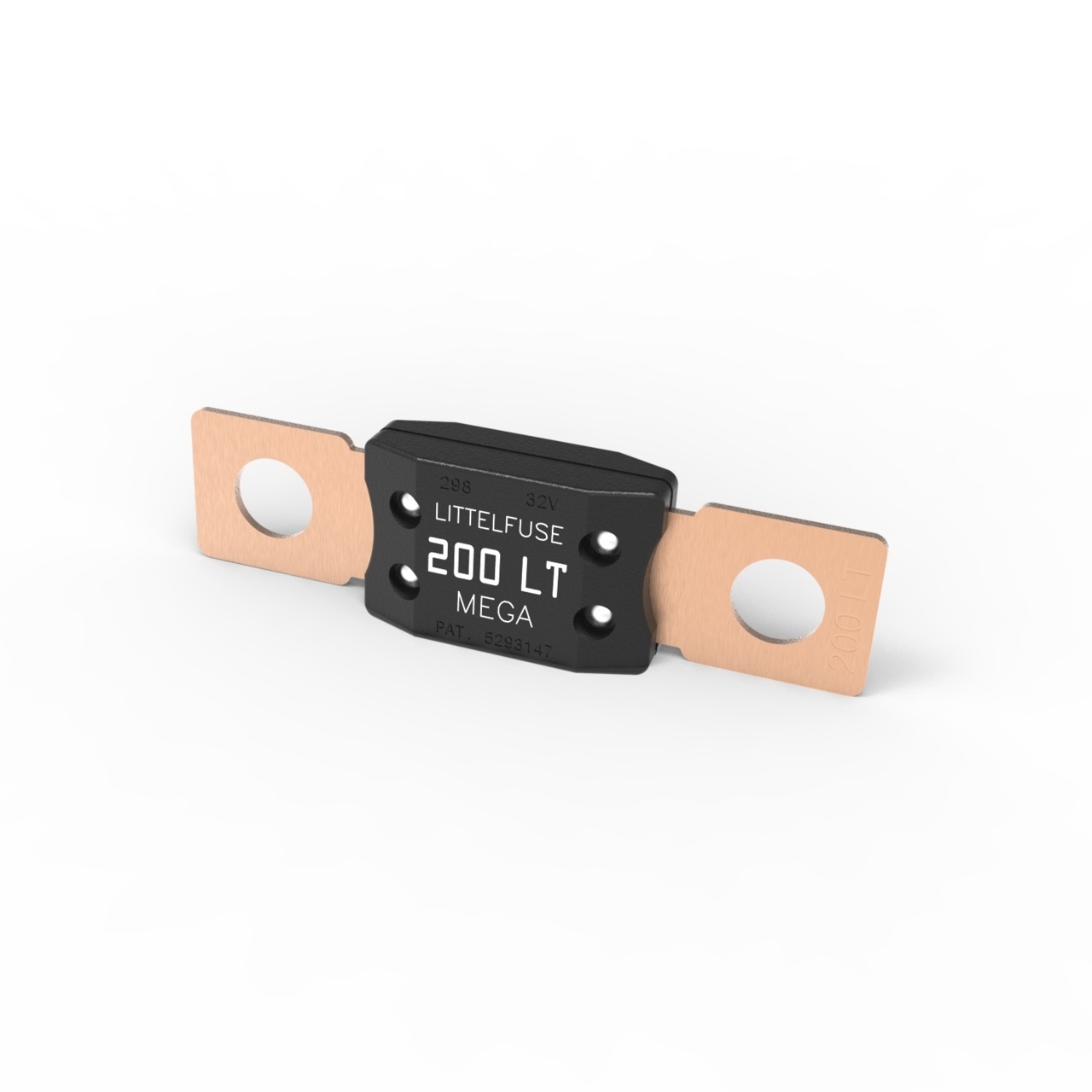

0298200.ZXEH-LT

Active

LITTELFUSE

AUTOMOTIVE FUSES 32V 200A MEGA LOW TEMP

Find alt

Alpha

0298200.ZXEH-LT

Active

LITTELFUSE

AUTOMOTIVE FUSES 32V 200A MEGA LOW TEMP

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

298 Series

The MEGA® Flex Series 70 V Bolt-Down Fuse Holder makes it simple to install a MEGA® fuse up to 500 amps. Its black UL 94 V-0 rated flexible cover allows cable entry at 6 different locations, and it accommodates large wire sizes and ring terminal stack up. In addition, this high-current fuse holder includes a dovetail feature on the sides, making it easy to connect multiple MEGA® Flex Series fuse holders to create a fused high-power distribution block. This fuse holder configuration (02981028HXFC) includes zinc-plated M8 studs, hex nuts, and split washers.

Technical Specifications

Parameters and characteristics for this part

Specification	0298200.ZXEH-LT

Current Rating	200 A
Fuse Type	Automotive
Melting I²t	140000
Mounting Type	Bolt Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package / Case	Auto Link
Size / Dimension Height	0.39 in
Size / Dimension Length	1.149 in
Size / Dimension Width	0.75 in
Voltage Rating - DC	32 V

298 Series

HOLDER MEGA FUSE WITH FLEXIBLE COVER

Part	Voltage Rating - DC	Breaking Capacity	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Mounting Type	Melting I²t	Fuse Type	Current Rating	For Use With/Related Products	Voltage	Fuse Width	Fuse Height	Fuse Length	Fuseholder Type	Termination Style	Number of Circuits	Contact Material	Contact Finish	Color	Response Time	DC Cold Resistance
LITTELFUSE 0298250.TXN	32 V	2 kA	125 °C	-40 °C	Auto Link	0.39 in	0.75 in	1.149 in	Bolt Mount	389000	Automotive	250 A
LITTELFUSE 02981003Z									Chassis Mount		Bolt Down	500 A	MEGA (AMG)	70 V	0.75 in	0.42 in	2.7 in	Block	Bolt Down	1
LITTELFUSE 0298225.UX1M8
LITTELFUSE 02981003ZXT									Chassis Mount		Bolt Down	500 A	MEGA (AMG)	70 V	0.75 in	0.42 in	2.7 in	Block	Bolt Down	1
LITTELFUSE 0298100.TXN	32 V	2 kA	125 °C	-40 °C	Auto Link	0.39 in	0.75 in	1.149 in	Bolt Mount	21500	Automotive	100 A
LITTELFUSE 02983001ZXFC									Chassis Mount		Bolt Down	500 A	MEGA (AMG)	32 VDC	0.75 in	0.42 in	2.7 in	Block	Bolt Down	3
LITTELFUSE 02981028HXFC									Chassis Mount		Bolt Down	500 A	MEGA (AMG)	70 V	0.75 in	0.42 in	2.7 in	Block	Bolt Down	1	Steel	Zinc
LITTELFUSE 0298450.ZXA	32 V	2 kA	125 °C	-40 °C	Auto Link	0.422 in	0.75 in	1.149 in	Bolt Mount		Automotive	450 A
LITTELFUSE 0298175.UX1M8	32 V	2 kA	125 °C	-40 °C	Auto Link	0.39 in	0.75 in	1.15 in	Bolt Mount	168000	Automotive	175 A											White	Slow Blow
LITTELFUSE 0298350.TXN	32 V	2 kA	125 °C	-40 °C	Auto Link	0.422 in	0.75 in	1.149 in	Bolt Mount		Automotive	350 A													0.138 Ohms
