2M1-SP3-T8-B0-M2QE

Active

Carling Technologies

SWITCH TOGGLE SPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

2M1-SP3-T8-B0-M2QE

Active

Carling Technologies

SWITCH TOGGLE SPDT 5A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.64
		10	$ 7.76
		25	$ 7.41
		50	$ 7.09
		100	$ 6.81
		250	$ 6.45
		500	$ 5.97
		1000	$ 5.69

Description

General part information

2M1-SP3 Series

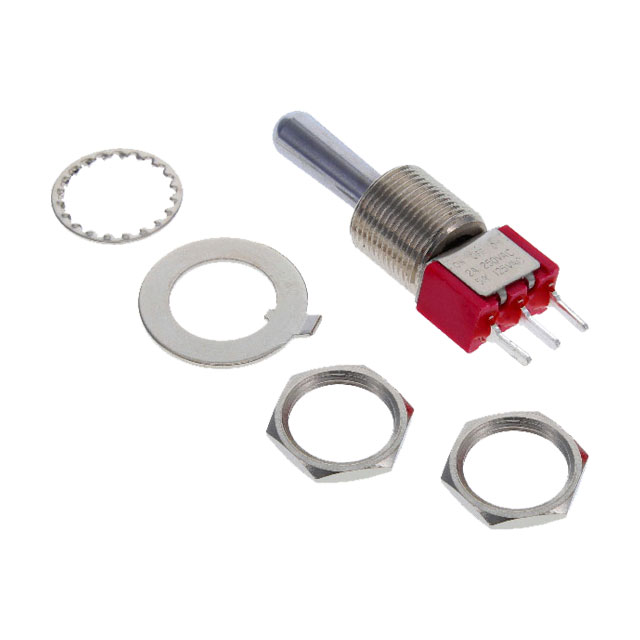

Toggle Switch SPDT Panel Mount

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2M1-SP3-T8-B0-M2QE	2M1-SP3 Series

Actuator Length	-	10.4 mm
Actuator Length [x]	17.5 mm	5.4 - 17.5 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Anti-Rotation	Standard Round, Anti-Rotation, Flatted
Bushing Thread	15/32-32	Unthreaded, 1/4-40, 15/32-32
Circuit	SPDT	SPDT
Current Rating (Amps)	5 A	0.4 - 5 VA
Electrical Life	50000 Cycles	50000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	-	Through Hole, Vertical, Right Angle, Panel Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	11.91 mm	0.25 - 11.91 in
Switch Function	On-Off-On	On-Off-On
Termination Style	PC Pin	PC Pin
Voltage Rating - AC	125 V	20 - 125 V
Voltage Rating - DC	28 V	20 - 28 V

2M1-SP3 Series

SWITCH TOGGLE SPDT 0.4VA 20V

Part	Features	Termination Style	Actuator Material	Actuator Type	Voltage Rating - AC	Actuator Length [x]	Illumination	Voltage Rating - DC	Circuit	Bushing Thread	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Mounting Type	Current Rating (Amps)	Ingress Protection	Panel Cutout Dimensions [diameter]	Actuator Length [z]
Carling Technologies 2M1-SP3-T2-B4-M7RE	Epoxy Sealed Terminals	PC Pin	Brass, Chrome Plated	Standard Round	20 V	5.4 mm	Non-Illuminated	20 V	SPDT	Unthreaded	On-Off-On	-30 ░C	85 °C	50000 Cycles	Right Angle, Through Hole, Vertical	0.4 VA
Carling Technologies 2M1-SP3-T2-B5-M2GE	Epoxy Sealed Terminals	PC Pin	Brass, Chrome Plated	Standard Round	125 V	5.4 mm	Non-Illuminated	28 V	SPDT	1/4-40	On-Off-On	-30 ░C	85 °C	50000 Cycles		5 A	IP67 - Dust Tight, Waterproof	0.25 in
Carling Technologies 2M1-SP3-T1-B1-M6RE	Epoxy Sealed Terminals	PC Pin	Brass, Chrome Plated	Standard Round	20 V		Non-Illuminated	20 V	SPDT	1/4-40	On-Off-On	-30 ░C	85 °C	50000 Cycles	Panel Mount, Right Angle	0.4 VA		0.25 in	10.4 mm
Carling Technologies 2M1-SP3-T1-B1-M7RE	Epoxy Sealed Terminals	PC Pin	Brass, Chrome Plated	Standard Round	20 V		Non-Illuminated	20 V	SPDT	1/4-40	On-Off-On	-30 ░C	85 °C	50000 Cycles	Panel Mount, Right Angle, Vertical	0.4 VA		0.25 in	10.4 mm
Carling Technologies 2M1-SP3-T8-B0-M2QE	Epoxy Sealed Terminals	PC Pin	Brass, Chrome Plated	Anti-Rotation	125 V	17.5 mm	Non-Illuminated	28 V	SPDT	15/32-32	On-Off-On	-30 ░C	85 °C	50000 Cycles		5 A	IP67 - Dust Tight, Waterproof	11.91 mm
Carling Technologies 2M1-SP3-T1-B9-M2QE	Epoxy Sealed Terminals	PC Pin	Brass, Chrome Plated	Standard Round	125 V		Non-Illuminated	28 V	SPDT	1/4-40	On-Off-On	-30 ░C	85 °C	50000 Cycles		5 A	IP67 - Dust Tight, Waterproof	0.25 in	10.4 mm
Carling Technologies 2M1-SP3-T6-BA-M7RE	Epoxy Sealed Terminals	PC Pin	Brass, Chrome Plated	Flatted	20 V	12.1 mm	Non-Illuminated	20 V	SPDT	1/4-40	On-Off-On	-30 ░C	85 °C	50000 Cycles	Right Angle, Through Hole, Vertical	0.4 VA		0.25 in
Carling Technologies 2M1-SP3-T1-B3-M7RE	Epoxy Sealed Terminals	PC Pin	Brass, Chrome Plated	Standard Round	20 V		Non-Illuminated	20 V	SPDT	1/4-40	On-Off-On	-30 ░C	85 °C	50000 Cycles	Panel Mount, Right Angle, Vertical	0.4 VA		0.25 in	10.4 mm
Carling Technologies 2M1-SP3-T7-B0-M2QE	Epoxy Sealed Terminals	PC Pin	Brass, Chrome Plated	Anti-Rotation	125 V	11.7 mm	Non-Illuminated	28 V	SPDT	15/32-32	On-Off-On	-30 ░C	85 °C	50000 Cycles		5 A	IP67 - Dust Tight, Waterproof	11.91 mm
