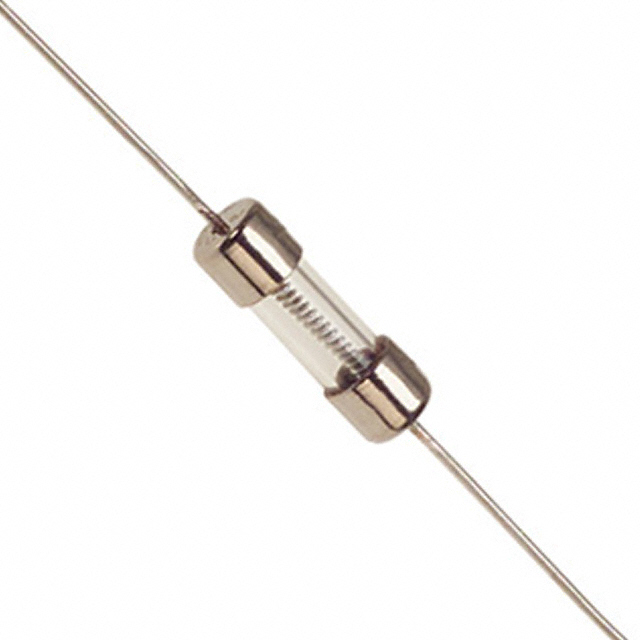

023002.5DRT3SP
ActiveLITTELFUSE
FUSE, CARTRIDGE, TIME DELAY, 2.5 A, 250 V, 5MM X 15MM, 0.2" X 0.59", SLO-BLO 230 SERIES
023002.5DRT3SP
ActiveLITTELFUSE
FUSE, CARTRIDGE, TIME DELAY, 2.5 A, 250 V, 5MM X 15MM, 0.2" X 0.59", SLO-BLO 230 SERIES
Description
General part information
023002.5DRT3SP
2.5 A 250 V AC 125 V DC Fuse Cartridge, Glass Through Hole Cartridge, Non-Standard (Axial)
Technical Specifications
Parameters and characteristics for this part
| Specification | 023002.5DRT3SP |
|---|---|
| Approval Agency | CSA, UL, CE, PSE |
| Breaking Capacity (AC) | 35 A |
| Breaking Capacity (DC) | 10 kA |
| Current Rating | 2.5 A |
| DC Cold Resistance | 0.0502 Ohms |
| Fuse Type | Cartridge, Glass |
| Melting I²t | 50 |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Cartridge, Non-Standard (Axial) |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 0.177 in |
| Size / Dimension Length | 0.571 in |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
