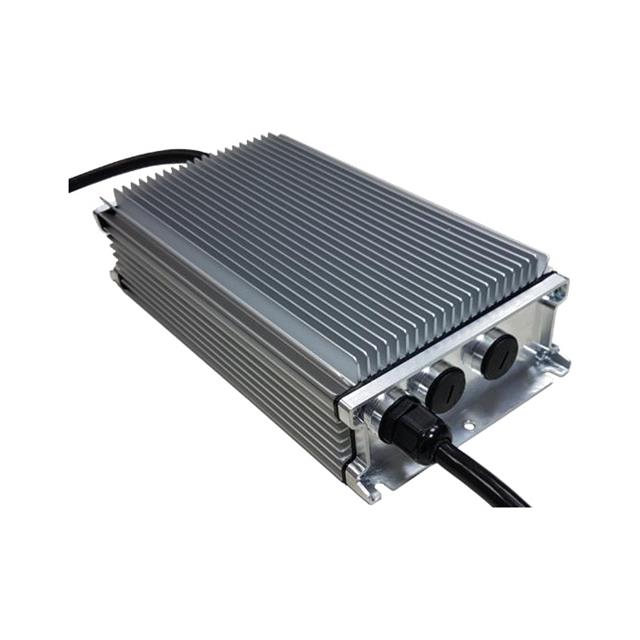

ABS601-1T24-SL
ActiveBel Power Solutions
POWER SUPPLY, AC-DC, 24V, 25A ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
ABS601-1T24-SL
ActiveBel Power Solutions
POWER SUPPLY, AC-DC, 24V, 25A ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ABS601-1T24-SL | ABS601 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Approval Agency | cURus, DEMKO, CE | cURus, DEMKO, CE |
| Current - Output 1 | 25 A | 12.5 - 25 A |
| Efficiency | 94 % | 94 % |
| Features | IP67, Adjustable Output, Universal Input, Remote Sense, Remote On/Off, PFC | IP67, Adjustable Output, Universal Input, Remote Sense, Remote On/Off, PFC |
| Minimum Load Required | False | False |
| Mounting Type | Chassis Mount | Chassis Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -30 °C | -30 °C |
| Power (Watts) | 600 W | 600 W |
| Size / Dimension [x] | 9.86 in | 9.86 in |
| Size / Dimension [x] | 250.5 mm | 250.5 mm |
| Size / Dimension [y] | 125 mm | 125 mm |
| Size / Dimension [y] | 4.92 in | 4.92 in |
| Size / Dimension [z] | 2.36 in | 2.36 in |
| Size / Dimension [z] | 60 mm | 60 mm |
| Standard Number | 60950-1 | 60950-1 |
| Type | Enclosed | Enclosed |
| Voltage - Input [Max] | 300 VDC, 305 VAC | 300 - 305 VDC |
| Voltage - Input [Min] | 85 VAC, 170 VDC | 85 - 170 VAC |
| Voltage - Isolation | 4000 V | 4000 V |
| Voltage - Output 1 | 24 V | 24 - 48 V |
ABS601 Series
POWER SUPPLY, AC-DC, 24V, 25A ROHS COMPLIANT: YES
| Part | Number of Outputs | Mounting Type | Current - Output 1 | Type | Approval Agency | Features | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Voltage - Isolation | Standard Number | Voltage - Output 1 | Minimum Load Required | Efficiency | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Input [Min] | Voltage - Input [Max] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bel Power Solutions ABS601-1T24-SL | 1 | Chassis Mount | 25 A | Enclosed | CE, cURus, DEMKO | Adjustable Output, IP67, PFC, Remote On/Off, Remote Sense, Universal Input | 70 °C | -30 °C | ITE (Commercial) | 4000 V | 60950-1 | 24 V | 94 % | 125 mm | 9.86 in | 2.36 in | 4.92 in | 60 mm | 250.5 mm | 85 VAC, 170 VDC | 300 VDC, 305 VAC | 600 W | |
Bel Power Solutions ABS601-1T48 | 1 | Chassis Mount | 12.5 A | Enclosed | CE, cURus, DEMKO | Adjustable Output, IP67, PFC, Remote On/Off, Remote Sense, Universal Input | 70 °C | -30 °C | ITE (Commercial) | 4000 V | 60950-1 | 48 V | 94 % | 125 mm | 9.86 in | 2.36 in | 4.92 in | 60 mm | 250.5 mm | 85 VAC, 170 VDC | 300 VDC, 305 VAC | 600 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ABS601 Series
Enclosed AC DC Converters 1 Output 24V 85 ~ 305 VAC, 170 ~ 300 VDC Input
