Active

Belden Inc.

TW PR #20 PE PE BRD PE

Search across all available documentation for this part.

Active

Belden Inc.

TW PR #20 PE PE BRD PE

Technical Specifications

Parameters and characteristics for this part

Specification	9815 0101000

Cable Type	Twinaxial
Conductor Material	Copper, Tinned, Copper, Bare
Conductor Strand [custom]	7
Conductor Strand [custom]	28 AWG
Impedance	100 Ohms
Jacket (Insulation) Diameter [diameter]	0.33 in
Jacket (Insulation) Diameter [diameter]	8.38 mm
Jacket (Insulation) Material	High Density Polyethylene (HDPE)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-55 °C
Shield Coverage	95 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Wire Gauge	20 AWG

Part	Shield Type	Shield Material	Jacket (Insulation) Material	Length	Length	Wire Gauge	Conductor Material	Jacket Color	Shield Coverage	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 9815 0101000	Braid Foil	Aluminum Copper Tinned	High Density Polyethylene (HDPE)	304.8 m	1000 ft	20 AWG	Copper Bare Copper Tinned	Black	95 % 100 %	100 Ohms	80 C	-55 °C	Twinaxial	0.33 in	8.38 mm	7	28 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 4.06

General part information

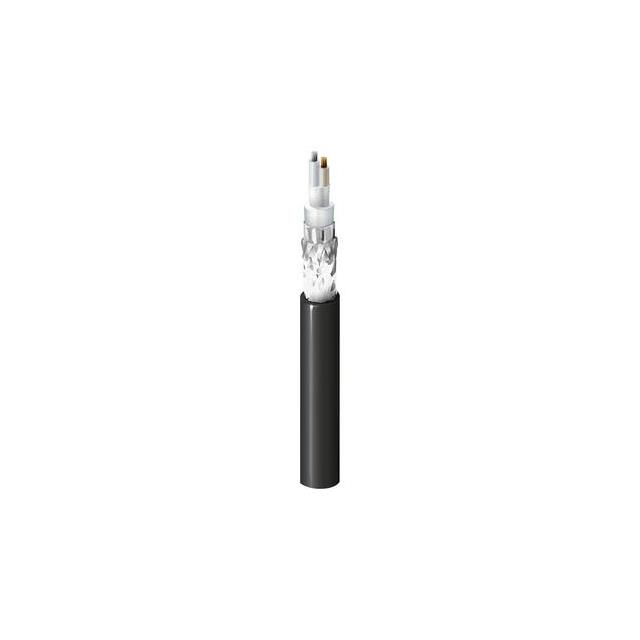

Twinaxial Cable 20 AWG 1000.0' (304.80m) 100 Ohms
