Description
General part information

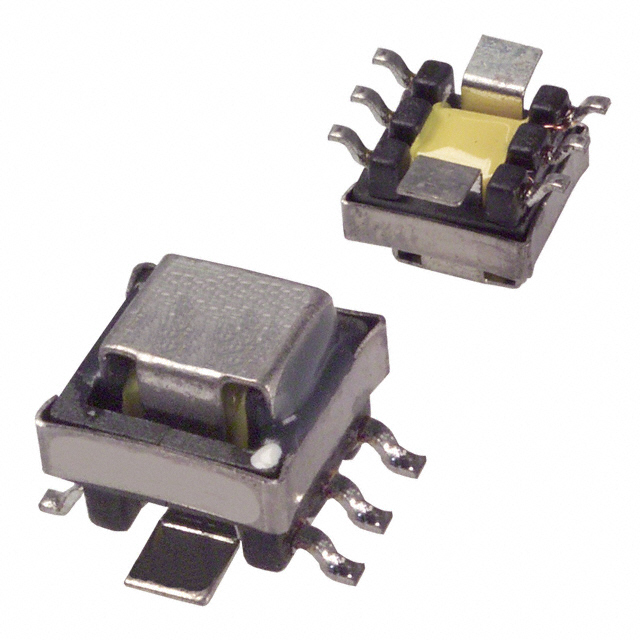

TCS-08
1:125 Current Sense Transformer 250kHz Min 6mOhm Primary, 7.7Ohm Secondary 3 mH Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | TCS-08 |
|---|---|
| DC Resistance (DCR) (Primary) | 6 mOhm |
| DC Resistance (DCR) (Secondary) | 7.7 Ohm |
| DC Resistance Type | Secondary, Primary |
| Frequency Range (Min) | 250 kHz |
| Height - Seated (Max) | 0.205 in |
| Inductance | 3 mH |
| Mounting Type | Surface Mount |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.331 in |
| Termination Style | Gull Wing |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary | 125 |
| Type | Invasive |
