1404229
ActivePhoenix Contact

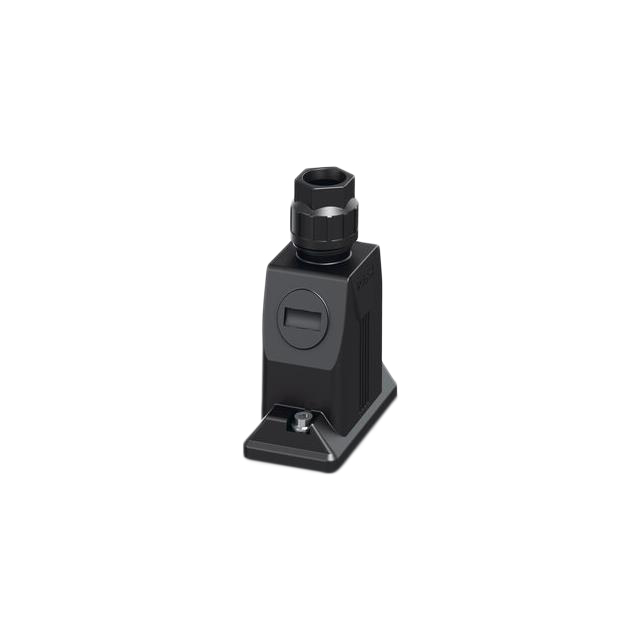

CONN HOOD TOP ENTRY SZB10 M32
1404229
ActivePhoenix Contact
CONN HOOD TOP ENTRY SZB10 M32
Description
General part information
1404229
Hood Connector Top Entry M32 B10 IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Technical Specifications
Parameters and characteristics for this part
| Specification | 1404229 |
|---|---|
| Connector Type | Hood |
| Housing Color | Black |
| Housing Material | Nylon, Polyamide, PA |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP69K, IP68, IP66 |
| Lock Location | Screw Locks on Hood |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Size | B10 |
| Size / Dimension Height | 5.276 in |
| Size / Dimension Length | 4.134 in |
| Size / Dimension Width | 2.244 in |
| Style | Top Entry |
| Thread Size | M32 |
