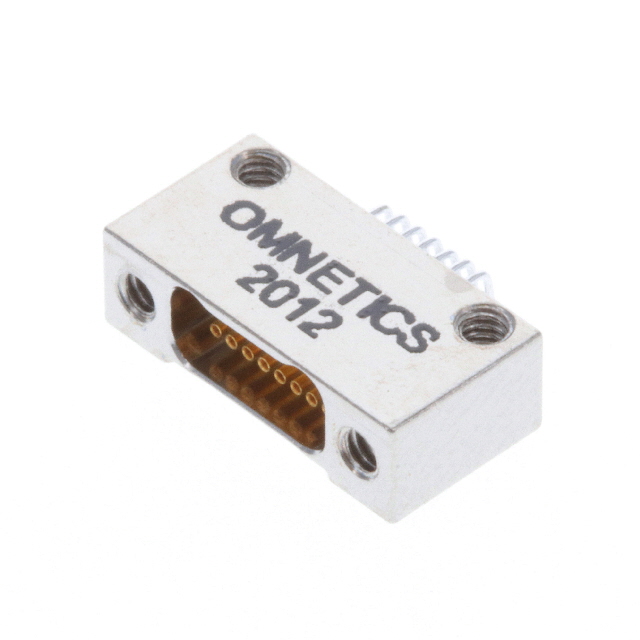

A29100-015

Active

Omnetics

CONN D-TYPE RCPT 15P SMD R/A SLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A29100-015

Active

Omnetics

CONN D-TYPE RCPT 15P SMD R/A SLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 181.13
		10	$ 167.85
	Digi-Reel®	1	$ 181.13
		10	$ 167.85
	Tape & Reel (TR)	25	$ 161.81
		50	$ 160.60

Description

General part information

MNSO Series

15 Position D-Type, Nano-D Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A29100-015	MNSO Series

Connector Style	D-Type, Nano-D	D-Type, Nano-D
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Signal	Signal
Dielectric Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Flange Feature	-	Housing/Shell
Flange Feature	-	80
Flange Feature	-	0
Flange Feature [Max] [custom]	80	80
Flange Feature [Max] [custom]	80	80
Flange Feature [Min] [custom]	0	0
Flange Feature [Min] [custom]	0	0
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle, Surface Mount
Number of Positions	15	9 - 85
Number of Rows	2	2
Shell Material, Finish	Nickel Plated, Aluminum	Nickel Plated, Aluminum
Shell Size, Connector Layout [custom]	0.025	0.025
Shell Size, Connector Layout [custom]	0.04	0.04
Termination	Solder	Solder

MNSO Series

CONN D-TYPE RCPT 9P SMD R/A SLDR

Part	Number of Positions	Contact Type	Flange Feature [Max] [custom]	Flange Feature [Max] [custom]	Connector Type	Shell Material, Finish	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Mounting Type	Contact Finish	Connector Style	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Termination	Dielectric Material	Number of Rows	Flange Feature	Flange Feature [Max]	Flange Feature [Min]
Omnetics A29100-009	9	Signal	80	80	Receptacle, Female Sockets	Aluminum, Nickel Plated	0.025	0.04	Surface Mount, Right Angle	Gold	D-Type, Nano-D	Copper Alloy	50 µin	1.27 µm	Solder	Liquid Crystal Polymer (LCP)	2
Omnetics A29200-051	51	Signal	80	80	Receptacle, Female Sockets	Aluminum, Nickel Plated	0.025	0.04	Surface Mount	Gold	D-Type, Nano-D	Copper Alloy	50 µin	1.27 µm	Solder	Liquid Crystal Polymer (LCP)	2
Omnetics A29100-037	37	Signal	80	80	Receptacle, Female Sockets	Aluminum, Nickel Plated	0.025	0.04	Surface Mount, Right Angle	Gold	D-Type, Nano-D	Copper Alloy	50 µin	1.27 µm	Solder	Liquid Crystal Polymer (LCP)	2
Omnetics A29100-025		Signal	80	80	Receptacle, Female Sockets	Aluminum, Nickel Plated	0.025	0.04	Surface Mount, Right Angle	Gold	D-Type, Nano-D	Copper Alloy	50 µin	1.27 µm	Solder	Liquid Crystal Polymer (LCP)	2
Omnetics A29200-031	31	Signal	80	80	Receptacle, Female Sockets	Aluminum, Nickel Plated	0.025	0.04	Surface Mount	Gold	D-Type, Nano-D	Copper Alloy	50 µin	1.27 µm	Solder	Liquid Crystal Polymer (LCP)	2
Omnetics A29100-085	85	Signal	80	80	Receptacle, Female Sockets	Aluminum, Nickel Plated	0.025	0.04	Surface Mount, Right Angle	Gold	D-Type, Nano-D	Copper Alloy	50 µin	1.27 µm	Solder	Liquid Crystal Polymer (LCP)	2	Housing/Shell	80	0
Omnetics A29200-037	37	Signal	80	80	Receptacle, Female Sockets	Aluminum, Nickel Plated	0.025	0.04	Surface Mount	Gold	D-Type, Nano-D	Copper Alloy	50 µin	1.27 µm	Solder	Liquid Crystal Polymer (LCP)	2
Omnetics A29200-015	15	Signal	80	80	Receptacle, Female Sockets	Aluminum, Nickel Plated	0.025	0.04	Surface Mount	Gold	D-Type, Nano-D	Copper Alloy	50 µin	1.27 µm	Solder	Liquid Crystal Polymer (LCP)	2
Omnetics A29100-051	51	Signal	80	80	Receptacle, Female Sockets	Aluminum, Nickel Plated	0.025	0.04	Surface Mount, Right Angle	Gold	D-Type, Nano-D	Copper Alloy	50 µin	1.27 µm	Solder	Liquid Crystal Polymer (LCP)	2
Omnetics A29200-025		Signal	80	80	Receptacle, Female Sockets	Aluminum, Nickel Plated	0.025	0.04	Surface Mount	Gold	D-Type, Nano-D	Copper Alloy	50 µin	1.27 µm	Solder	Liquid Crystal Polymer (LCP)	2
