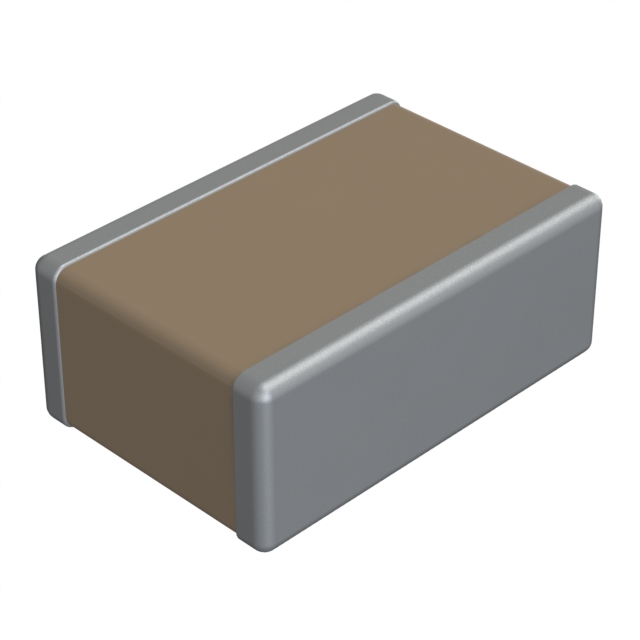

1825J1K20681GCT

Active

Knowles Syfer

CAP CER 680PF 1.2KV C0G/NP0 1825

Deep-Dive with AI

Search across all available documentation for this part.

1825J1K20681GCT

Active

Knowles Syfer

CAP CER 680PF 1.2KV C0G/NP0 1825

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1825J1K20681GCT	1825J Series

Applications	General Purpose	General Purpose, Automotive
Capacitance	680 pF	0.001 - 100000 pF
Features	-	High Voltage
Mounting Type	Surface Mount, MLCC	Surface Mount, MLCC
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	4564 Metric	4564 Metric
Package / Case	1825	1825
Ratings	-	AEC-Q200
Size / Dimension [x]	4.5 mm	4.5 mm
Size / Dimension [x]	0.177 in	0.177 in
Size / Dimension [y]	0.252 in	0.252 in
Size / Dimension [y]	6.4 mm	6.4 mm
Temperature Coefficient	NP0 (1B), C0G	NP0 (1B), C0G, X7R
Thickness (Max) [Max]	0.098 in	0.098 in
Thickness (Max) [Max]	2.5 mm	2.5 mm
Tolerance	2 %	1 - 20 %
Voltage - Rated	-	1 - 6 kV
Voltage - Rated	-	2.5 - 6000 V
Voltage - Rated	-	16 V
Voltage - Rated [custom]	1.2 kV	1.2 kV
Voltage - Rated [custom]	1200 V	1200 V

1825J Series

CAP CER 22PF 2KV C0G/NP0 1825

...

Part	Applications	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Thickness (Max) [Max]	Thickness (Max) [Max]	Tolerance	Mounting Type	Capacitance	Voltage - Rated	Voltage - Rated	Ratings	Features
Knowles Syfer 1825J2K00220GCT	General Purpose	C0G, NP0 (1B)	0.252 in	4.5 mm	0.177 in	6.4 mm	-55 °C	125 °C	4564 Metric	1825	0.098 in	2.5 mm	2 %	MLCC, Surface Mount	22 pF	2 kV	2000 V
Knowles Syfer 1825J0630391KCT	General Purpose	C0G, NP0 (1B)	0.252 in	4.5 mm	0.177 in	6.4 mm	-55 °C	125 °C	4564 Metric	1825	0.098 in	2.5 mm	10 %	MLCC, Surface Mount	390 pF
Knowles Syfer 1825J1K00390JCT	General Purpose	C0G, NP0 (1B)	0.252 in	4.5 mm	0.177 in	6.4 mm	-55 °C	125 °C	4564 Metric	1825	0.098 in	2.5 mm	5 %	MLCC, Surface Mount	39 pF	1 kV	1000 V
Knowles Syfer 1825J0250224KCT	General Purpose	C0G, NP0 (1B)	0.252 in	4.5 mm	0.177 in	6.4 mm	-55 °C	125 °C	4564 Metric	1825	0.098 in	2.5 mm	10 %	MLCC, Surface Mount	0.22 µF		25 VDC
Knowles Syfer 1825J2500184KXT	General Purpose	X7R	0.252 in	4.5 mm	0.177 in	6.4 mm	-55 °C	125 °C	4564 Metric	1825	0.098 in	2.5 mm	10 %	MLCC, Surface Mount	0.18 µF		250 V
Knowles Syfer 1825J1K00682JKT	Automotive	C0G, NP0 (1B)	0.252 in	4.5 mm	0.177 in	6.4 mm	-55 °C	125 °C	4564 Metric	1825	0.098 in	2.5 mm	5 %	MLCC, Surface Mount	6800 pF	1 kV	1000 V	AEC-Q200	High Voltage
Knowles Syfer 1825J5000391JCT	General Purpose	C0G, NP0 (1B)	0.252 in	4.5 mm	0.177 in	6.4 mm	-55 °C	125 °C	4564 Metric	1825	0.098 in	2.5 mm	5 %	MLCC, Surface Mount	390 pF		500 V
Knowles Syfer 1825J0100123JCT	General Purpose	C0G, NP0 (1B)	0.252 in	4.5 mm	0.177 in	6.4 mm	-55 °C	125 °C	4564 Metric	1825	0.098 in	2.5 mm	5 %	MLCC, Surface Mount	0.012 µF		10 V
Knowles Syfer 1825J2K50272KXT	General Purpose	X7R	0.252 in	4.5 mm	0.177 in	6.4 mm	-55 °C	125 °C	4564 Metric	1825	0.098 in	2.5 mm	10 %	MLCC, Surface Mount	2700 pF	2.5 kV	2.5 kV
Knowles Syfer 1825J0500185MXT	General Purpose	X7R	0.252 in	4.5 mm	0.177 in	6.4 mm	-55 °C	125 °C	4564 Metric	1825	0.098 in	2.5 mm	20 %	MLCC, Surface Mount	1.8 µF		50 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 2.15

Description

General part information

1825J Series

680 pF ±2% 1200V (1.2kV) Ceramic Capacitor C0G, NP0 (1B) 1825 (4564 Metric)
