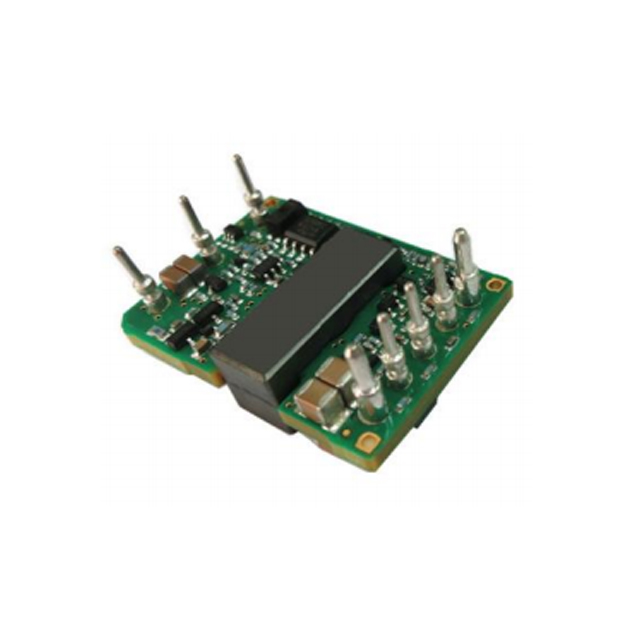

SRS3033N015N25W

Active

NetPower

DC DC CONVERTER 3.3V 50W

Search across all available documentation for this part.

Active

NetPower

DC DC CONVERTER 3.3V 50W

Technical Specifications

Parameters and characteristics for this part

Specification	SRS3033N015N25W

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	15 A
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Sixteenth Brick
Power (Watts)	50 W
Size / Dimension [x]	33 mm
Size / Dimension [x]	1.3 "
Size / Dimension [y]	22.9 mm
Size / Dimension [y]	0.9 "
Size / Dimension [z]	9.4 mm
Size / Dimension [z]	0.37 in
Supplier Device Package	Sixteenth Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	3.3 V

DC DC CONVERTER 3.3V 50W

Part	Control Features	Package / Case	Voltage - Input (Min) [Min]	Supplier Device Package	Mounting Type	Number of Outputs	Current - Output (Max) [Max]	Features	Applications	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Voltage - Isolation
NetPower SRS3033N015N25W	Active Low, Enable	Sixteenth Brick	18 V	Sixteenth Brick	Through Hole	1	15 A	Adjustable Output, Remote On/Off, Remote Sense	ITE (Commercial)	Isolated Module	33 mm	1.3 "	22.9 mm	0.9 "	9.4 mm	0.37 in	75 V	3.3 V	85 °C	-40 °C	50 W	2250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2	$ 41.50

General part information

Isolated Module DC DC Converter 1 Output 3.3V 15A 18V - 75V Input
