RR3PA-ULAC230V
ActiveIDEC Corporation

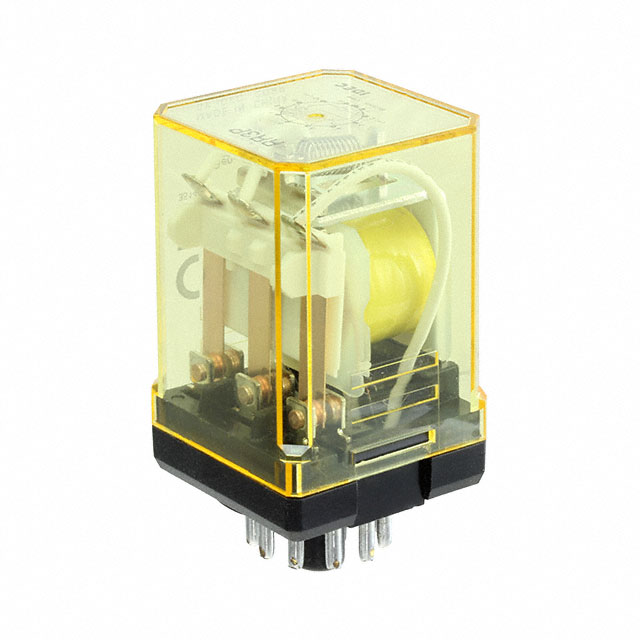

RELAY GEN PURPOSE 3PDT 10A 230V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RR3PA-ULAC230V
ActiveIDEC Corporation
RELAY GEN PURPOSE 3PDT 10A 230V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RR3PA-ULAC230V | RR3PA-U Series |
|---|---|---|
| Approval Agency | CSA, TUV, cURus, CE | CSA, TUV, cURus, CE |
| Coil Current | 11 mA | 10.5 - 240 mA |
| Coil Resistance | 20.9 kOhms | 1.6 - 905.7 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 230 VAC | 12 - 240 VDC |
| Contact Form | 3PDT (3 Form C) | 3PDT (3 Form C) |
| Contact Material | Silver (Ag) | Silver (Ag) |
| Contact Rating (Current) | 10 A | 10 A |
| Features | Lighted Indicator | Test Button, Lighted Indicator, RC Circuit |
| Load - Max Switching | 300 W, 2400 VA | 300 - 2400 W |
| Mounting Type | Socketable | Socketable |
| Must Operate Voltage | 184 VAC | 4.8 - 192 VDC |
| Must Release Voltage | 69 VAC | 0.6 - 72 VDC |
| Operate Time | 25 ms | 25 ms |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 25 ms | 25 ms |
| Switching Voltage | 30 VDC, 240 VAC | 30 - 240 VDC |
| Termination Style | Plug In, 11 Pin (Octal) | Plug In, 11 Pin (Octal), Plug In, Quick Connect - 0.187" (4.7mm) |
RR3PA-U Series
RELAY PLUG-IN 3PDT 10A 48VDC ROHS COMPLIANT: YES
| Part | Approval Agency | Switching Voltage | Must Release Voltage | Features | Relay Type | Load - Max Switching | Must Operate Voltage | Coil Type | Contact Rating (Current) | Coil Resistance | Mounting Type | Contact Material | Contact Form | Coil Voltage | Release Time | Operate Time | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IDEC Corporation RR3PA-ULCDC48V | CE, CSA, cURus, TUV | 30 VDC, 240 VAC | 4.8 VDC | Lighted Indicator, Test Button | General Purpose | 300 W, 2400 VA | 38.4 VDC | Non Latching | 10 A | 1.6 kOhms | Socketable | Silver (Ag) | 3PDT (3 Form C) | 48 VDC | 25 ms | 25 ms | Plug In, 11 Pin (Octal) | -25 °C | 40 °C | 30 mA |
IDEC Corporation RR3PA-ULCDC110V | CE, CSA, cURus, TUV | 30 VDC, 240 VAC | 11 VDC | Lighted Indicator, Test Button | General Purpose | 300 W, 2400 VA | 88 VDC | Non Latching | 10 A | 8.46 kOhms | Socketable | Silver (Ag) | 3PDT (3 Form C) | 110 VDC | 25 ms | 25 ms | Plug In, 11 Pin (Octal) | -25 °C | 40 °C | 13 mA |
IDEC Corporation RR3PA-UCDC110V | CE, CSA, cURus, TUV | 30 VDC, 240 VAC | 11 VDC | Test Button | General Purpose | 300 W, 2400 VA | 88 VDC | Non Latching | 10 A | 8.46 kOhms | Socketable | Silver (Ag) | 3PDT (3 Form C) | 110 VDC | 25 ms | 25 ms | Plug In, Quick Connect - 0.187" (4.7mm) | -25 °C | 40 °C | 13 mA |
IDEC Corporation RR3PA-UDC12V | CE, CSA, cURus, TUV | 30 VDC, 240 VAC | 1.2 VDC | General Purpose | 300 W, 2400 VA | 9.6 VDC | Non Latching | 10 A | 100 Ohms | Socketable | Silver (Ag) | 3PDT (3 Form C) | 12 VDC | 25 ms | 25 ms | Plug In, 11 Pin (Octal) | -25 °C | 40 °C | 120 mA | |
IDEC Corporation RR3PA-UAC230V | CE, CSA, cURus, TUV | 30 VDC, 240 VAC | 69 VAC | General Purpose | 300 W, 2400 VA | 184 VAC | Non Latching | 10 A | 20.909 kOhms | Socketable | Silver (Ag) | 3PDT (3 Form C) | 230 VAC | 25 ms | 25 ms | Plug In, 11 Pin (Octal) | -25 °C | 40 °C | 11 mA | |
IDEC Corporation RR3PA-ULCDC6V | CE, CSA, cURus, TUV | 30 VDC, 240 VAC | 0.6 VDC | Lighted Indicator, Test Button | General Purpose | 300 W, 2400 VA | 4.8 VDC | Non Latching | 10 A | 25 Ohms | Socketable | Silver (Ag) | 3PDT (3 Form C) | 25 ms | 25 ms | Plug In, 11 Pin (Octal) | -25 °C | 40 °C | 240 mA | |
IDEC Corporation RR3PA-ULCDC24V | CE, CSA, cURus, TUV | 30 VDC, 240 VAC | 2.4 VDC | Lighted Indicator, Test Button | General Purpose | 300 W, 2400 VA | 19.2 VDC | Non Latching | 10 A | 400 Ohms | Socketable | Silver (Ag) | 3PDT (3 Form C) | 24 VDC | 25 ms | 25 ms | Plug In, 11 Pin (Octal) | -25 °C | 40 °C | 60 mA |
IDEC Corporation RR3PA-ULDC24V | CE, CSA, cURus, TUV | 30 VDC, 240 VAC | 2.4 VDC | Lighted Indicator | General Purpose | 300 W, 2400 VA | 19.2 VDC | Non Latching | 10 A | 400 Ohms | Socketable | Silver (Ag) | 3PDT (3 Form C) | 24 VDC | 25 ms | 25 ms | Plug In, 11 Pin (Octal) | -25 °C | 40 °C | 60 mA |
IDEC Corporation RR3PA-UDC48V | CE, CSA, cURus, TUV | 30 VDC, 240 VAC | 4.8 VDC | General Purpose | 300 W, 2400 VA | 38.4 VDC | Non Latching | 10 A | 1.6 kOhms | Socketable | Silver (Ag) | 3PDT (3 Form C) | 48 VDC | 25 ms | 25 ms | Plug In, 11 Pin (Octal) | -25 °C | 40 °C | 30 mA | |
IDEC Corporation RR3PA-ULAC120V | CE, CSA, cURus, TUV | 30 VDC, 240 VAC | 36 VAC | Lighted Indicator | General Purpose | 300 W, 2400 VA | 96 VAC | Non Latching | 10 A | 2.1 kOhms | Socketable | Silver (Ag) | 3PDT (3 Form C) | 120 VAC | 25 ms | 25 ms | Plug In, 11 Pin (Octal) | -25 °C | 40 °C | 20.5 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.28 | |
| 10 | $ 20.34 | |||
| 25 | $ 19.98 | |||
Description
General part information
RR3PA-U Series
General Purpose Relay 3PDT (3 Form C) 230VAC Coil Socketable
