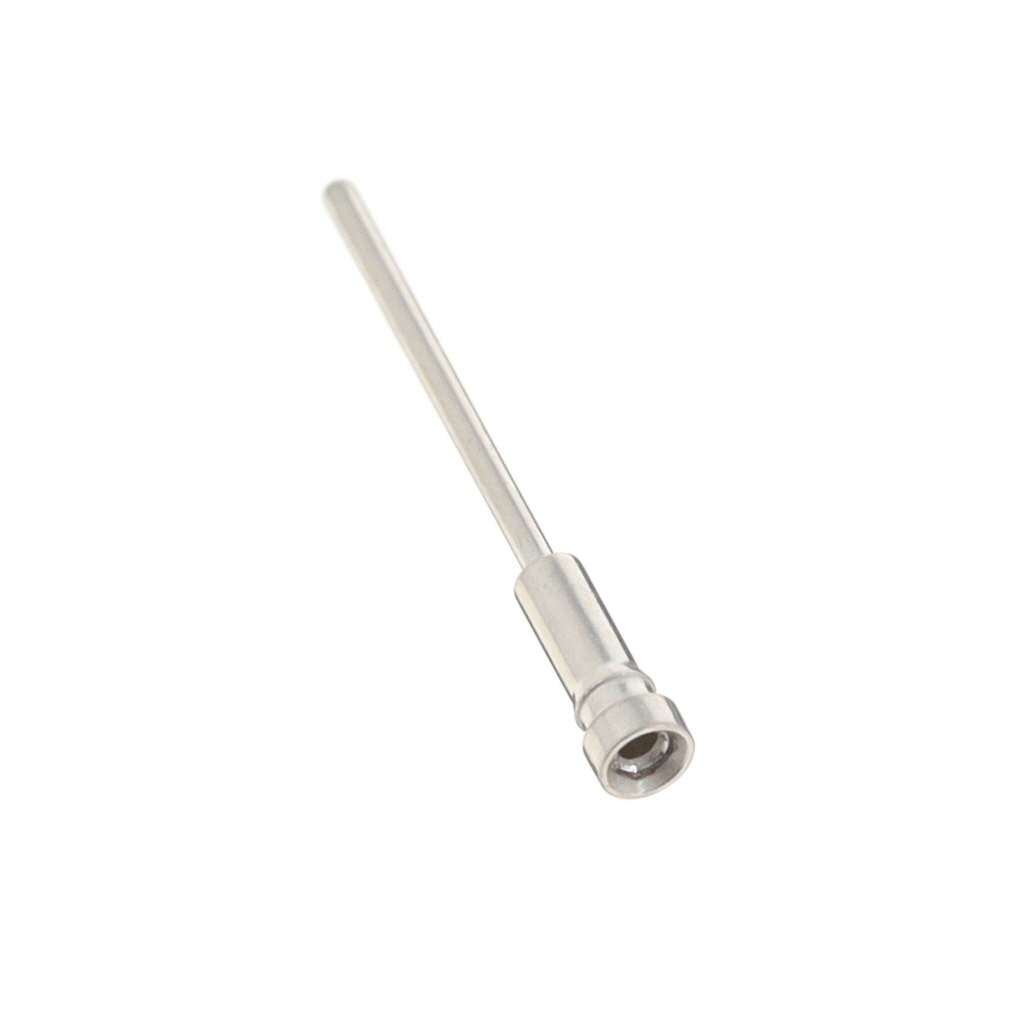

0152-0-15-80-30-84-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Deep-Dive with AI

Search across all available documentation for this part.

0152-0-15-80-30-84-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0152-0-15-80-30-84-04-0

Accepts Pin Diameter [Max]	0.025 "
Accepts Pin Diameter [Max]	0.64 mm
Accepts Pin Diameter [Min]	0.015 "
Accepts Pin Diameter [Min]	0.38 mm
Contact Finish	Tin
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.83 mm
Flange Diameter [diameter]	0.072 in
Length - Overall [x]	0.6 in
Length - Overall [x]	15.24 mm
Mounting Hole Diameter [diameter]	0.057 "
Mounting Hole Diameter [diameter]	1.45 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Socket Depth	3.81 mm
Socket Depth	0.15 in
Tail Diameter [diameter]	0.025 in
Tail Diameter [diameter]	0.64 mm
Tail Type	Standard Tail
Termination	Press-Fit

0152-0 Series

Part	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Length - Overall [x]	Length - Overall [x]	Socket Depth	Socket Depth	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Finish	Tail Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Contact Material
Mill-Max Manufacturing Corp. 0152-0-15-15-30-14-04-0	1.83 mm	0.072 in	10 Áin	0.25 Ám	-55 °C	125 °C	0.025 "	0.64 mm	0.015 "	0.38 mm	0.6 in	15.24 mm	3.81 mm	0.15 in	0.025 in	0.64 mm	Gold	Standard Tail	0.057 "	1.45 mm	Press-Fit	Beryllium Copper
Mill-Max Manufacturing Corp. 0152-0-15-01-30-14-04-0	1.83 mm	0.072 in	10 Áin	0.25 Ám	-55 °C	125 °C	0.025 "	0.64 mm	0.015 "	0.38 mm	0.6 in	15.24 mm	3.81 mm	0.15 in	0.025 in	0.64 mm	Gold	Standard Tail	0.057 "	1.45 mm	Press-Fit	Beryllium Copper
Mill-Max Manufacturing Corp. 0152-0-15-80-30-84-04-0	1.83 mm	0.072 in	100 µin	2.54 µm	-55 °C	125 °C	0.025 "	0.64 mm	0.015 "	0.38 mm	0.6 in	15.24 mm	3.81 mm	0.15 in	0.025 in	0.64 mm	Tin	Standard Tail	0.057 "	1.45 mm	Press-Fit	Beryllium Copper
Mill-Max Manufacturing Corp. 0152-0-15-01-30-27-04-0	1.83 mm	0.072 in	30 Áin	0.76 Ám	-55 °C	125 °C	0.025 "	0.64 mm	0.015 "	0.38 mm	0.6 in	15.24 mm	3.81 mm	0.15 in	0.025 in	0.64 mm	Gold	Standard Tail	0.057 "	1.45 mm	Press-Fit	Beryllium Copper
Mill-Max Manufacturing Corp. 0152-0-15-01-30-02-04-0	1.83 mm	0.072 in	100 µin	2.54 µm	-55 °C	125 °C	0.025 "	0.64 mm	0.015 "	0.38 mm	0.6 in	15.24 mm	3.81 mm	0.15 in	0.025 in	0.64 mm	Tin-Lead	Standard Tail	0.057 "	1.45 mm	Press-Fit	Beryllium Copper
Mill-Max Manufacturing Corp. 0152-0-15-80-30-27-04-0	1.83 mm	0.072 in	30 Áin	0.76 Ám	-55 °C	125 °C	0.025 "	0.64 mm	0.015 "	0.38 mm	0.6 in	15.24 mm	3.81 mm	0.15 in	0.025 in	0.64 mm	Gold	Standard Tail	0.057 "	1.45 mm	Press-Fit	Beryllium Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.17
		10	$ 0.99
		100	$ 0.89
		1000	$ 0.65
		5000	$ 0.57
		10000	$ 0.54

Description

General part information

0152-0 Series

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Standard Tail Press-Fit
