NMUSB202MC-R7
ActiveMurata Power Solutions Inc.

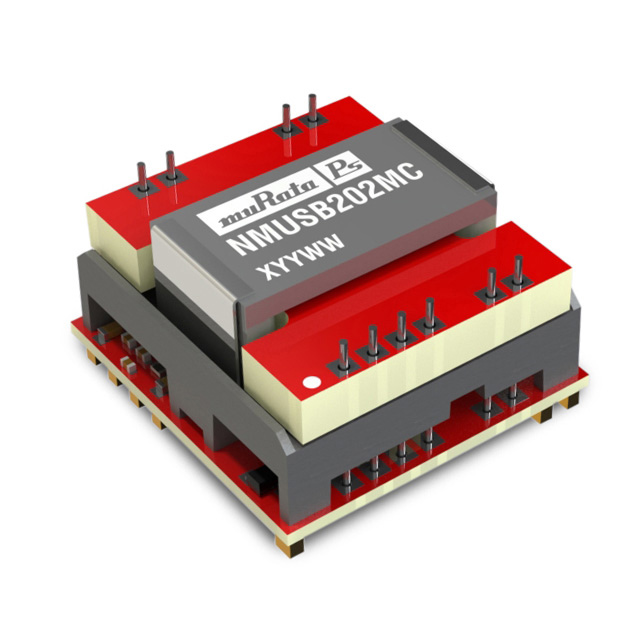

DGTL ISOL 3000VAC 2CH USB MODULE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NMUSB202MC-R7
ActiveMurata Power Solutions Inc.
DGTL ISOL 3000VAC 2CH USB MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NMUSB202MC-R7 | NMUSB Series |
|---|---|---|
| Channel Type | Bidirectional | Bidirectional |
| Contents | - | Board(s) |
| Data Rate | 12 Mbps | 12 Mbps |
| Embedded | - | False |
| Function | - | Isolator |
| Inputs - Side 1/Side 2 | 1/1 | 1/1 |
| Isolated Power | True | True |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Channels [custom] | 2 | 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 13-SMD Module | 13-SMD Module |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | Module | Module |
| Technology | Magnetic Coupling | Magnetic Coupling |
| Type | USB | USB, Interface |
| Voltage - Isolation | 3000 VAC | 3000 VAC |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 4.5 V | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
NMUSB Series
DGTL ISOL 3000VAC 2CH USB MODULE
| Part | Number of Channels [custom] | Voltage - Isolation | Technology | Voltage - Supply [Min] | Voltage - Supply [Max] | Package / Case | Mounting Type | Data Rate | Operating Temperature [Max] | Operating Temperature [Min] | Isolated Power | Type | Channel Type | Supplier Device Package | Inputs - Side 1/Side 2 | Function | Supplied Contents | Embedded | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NMUSB202MC-R7 | 2 | 3000 VAC | Magnetic Coupling | 4.5 V | 5.5 V | 13-SMD Module | Surface Mount | 12 Mbps | 85 °C | -40 °C | USB | Bidirectional | Module | 1/1 | |||||
Murata Power Solutions Inc. NMUSBEVALEXC | Interface | Isolator | Board(s) | ||||||||||||||||
Murata Power Solutions Inc. NMUSBEVALC | Interface | Isolator | Board(s) | Board(s) |
Description
General part information
NMUSB Series
USB Digital Isolator 3000VAC 2 Channel 12Mbps CMTI 13-SMD Module
