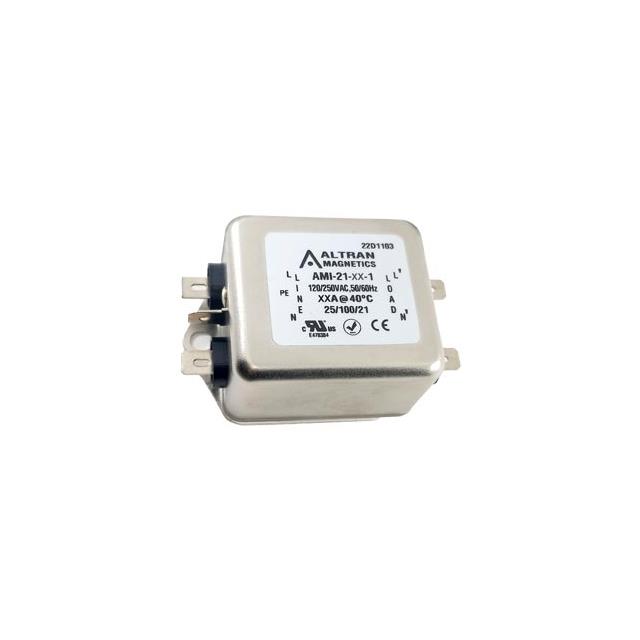

AMI-21A-16-1

Active

Altran Magnetics, LLC

LINE FILTER 250VAC 16A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AMI-21A-16-1

Active

Altran Magnetics, LLC

LINE FILTER 250VAC 16A CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 20.95
		10	$ 17.09
		25	$ 15.76
		50	$ 14.82

Description

General part information

AMI-21A Series

Single Phase EMC/EMI Line Filter 16 A 250V DC ~ 400Hz Single Stage

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AMI-21A-16-1	AMI-21A Series

Applications	Safety	Safety
Approval Agency	CE, cURus	CE, cURus
Configuration	Single Stage	Single Stage
Current	16 A	1 - 60 A
Filter Type	Single Phase	Single Phase
Frequency - Operating	400 Hz	400 Hz
Inductance	600 µH	1 - 800 µH
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Termination Style	-	Quick Connect, Wire Leads, Threaded Post (M4)
Voltage - Rated AC	250 V	250 V

AMI-21A Series

LINE FILTER 250VAC 12A CHASSIS

Part	Operating Temperature [custom]	Applications	Approval Agency	Current	Voltage - Rated AC	Filter Type	Mounting Type	Frequency - Operating	Inductance	Termination Style	Configuration
Altran Magnetics, LLC AMI-21A-12-1	-25 °C, 100 °C	Safety	CE, cURus	12 A	250 V	Single Phase	Chassis Mount	400 Hz	700 µH	Quick Connect	Single Stage
Altran Magnetics, LLC AMI-21A-10-1	-25 °C, 100 °C	Safety	CE, cURus	10 A	250 V	Single Phase	Chassis Mount	400 Hz	800 µH	Quick Connect	Single Stage
Altran Magnetics, LLC AMI-21A-13-3	-25 °C, 100 °C	Safety	CE, cURus	13 A	250 V	Single Phase	Chassis Mount	400 Hz	700 µH		Single Stage
Altran Magnetics, LLC AMI-21A-3-3	-25 °C, 100 °C	Safety	CE, cURus	3 A	250 V	Single Phase	Chassis Mount	400 Hz	2.5 mH	Quick Connect	Single Stage
Altran Magnetics, LLC AMI-21A-20-6	-25 °C, 100 °C	Safety	CE, cURus	20 A	250 V	Single Phase	Chassis Mount	400 Hz	700 µH	Quick Connect	Single Stage
Altran Magnetics, LLC AMI-21A-12-3	-25 °C, 100 °C	Safety	CE, cURus	12 A	250 V	Single Phase	Chassis Mount	400 Hz	700 µH	Quick Connect	Single Stage
Altran Magnetics, LLC AMI-21A-13-1	-25 °C, 100 °C	Safety	CE, cURus	13 A	250 V	Single Phase	Chassis Mount	400 Hz	700 µH		Single Stage
Altran Magnetics, LLC AMI-21A-1-3	-25 °C, 100 °C	Safety	CE, cURus	1 A	250 V	Single Phase	Chassis Mount	400 Hz	12 mH	Quick Connect	Single Stage
Altran Magnetics, LLC AMI-21A-16-3	-25 °C, 100 °C	Safety	CE, cURus	16 A	250 V	Single Phase	Chassis Mount	400 Hz	600 µH	Quick Connect, Wire Leads	Single Stage
Altran Magnetics, LLC AMI-21A-6-3	-25 °C, 100 °C	Safety	CE, cURus	6 A	250 V	Single Phase	Chassis Mount	400 Hz	1 mH	Quick Connect	Single Stage
