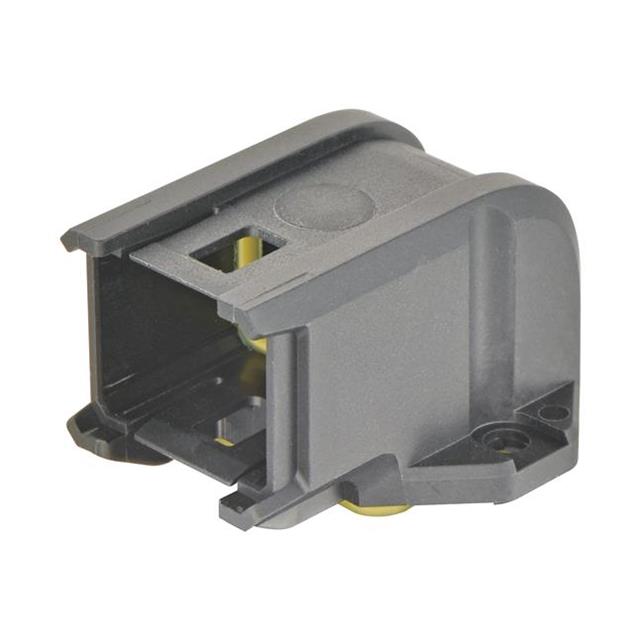

09100000800

Active

HARTING

HEAVY DUTY CONNECTOR HOOD, HAN SERIES, 90°, 1A, HARTING HAN SERIES SIZE 1A HEAVY DUTY CONNECTORS

Search across all available documentation for this part.

Active

HARTING

HEAVY DUTY CONNECTOR HOOD, HAN SERIES, 90°, 1A, HARTING HAN SERIES SIZE 1A HEAVY DUTY CONNECTORS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount 90° Connector Bottom Entry 1A IP65 - Dust Tight, Water Resistant

Specification	09100000800	09100000 Series

Connector Type	Base - Panel Mount 90°	Base - Panel Mount, Base - Panel Mount 90°, Hood
Housing Color	Black	Black
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Lock Location	Screw Locks on Hood	Screw Locks on Hood, Locking Clip (1) on Base Bottom
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Size	1 A	1 A
Size / Dimension	-	20.3 mm
Size / Dimension	-	47 mm
Size / Dimension	-	16.3 mm
Size / Dimension [x]	34.4 mm	0.799 - 34.4 mm
Size / Dimension [x]	1.354 in	1.354 in
Size / Dimension [y]	1.016 in	1.016 in
Size / Dimension [y]	25.8 mm	0.642 - 25.8 mm
Size / Dimension [z]	0.898 in	0.795 - 0.898 "
Size / Dimension [z]	22.8 mm	1.85 - 22.8 mm
Style	Bottom Entry	Bottom Entry, Top Entry

Part	Operating Temperature [Min]	Operating Temperature [Max]	Style	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Housing Color	Ingress Protection	Connector Type	Housing Material	Lock Location	Size	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
HARTING 09100000300	-30 ░C	90 °C	Bottom Entry	0.795 "	1.354 in	20.2 mm	1.016 in	34.4 mm	25.8 mm	Black	IP65 - Dust Tight, Water Resistant	Base - Panel Mount	Polyamide (PA), Nylon	Screw Locks on Hood	1 A
HARTING 09100000800	-30 ░C	90 °C	Bottom Entry	0.898 in	1.354 in	22.8 mm	1.016 in	34.4 mm	25.8 mm	Black	IP65 - Dust Tight, Water Resistant	Base - Panel Mount 90°	Polyamide (PA), Nylon	Screw Locks on Hood	1 A
HARTING 09100000400	-30 ░C	90 °C	Top Entry			1.85 in		0.799 in	0.642 in	Black	IP65 - Dust Tight, Water Resistant	Hood	Polyamide (PA), Nylon	Locking Clip (1) on Base Bottom	1 A	20.3 mm	47 mm	16.3 mm
