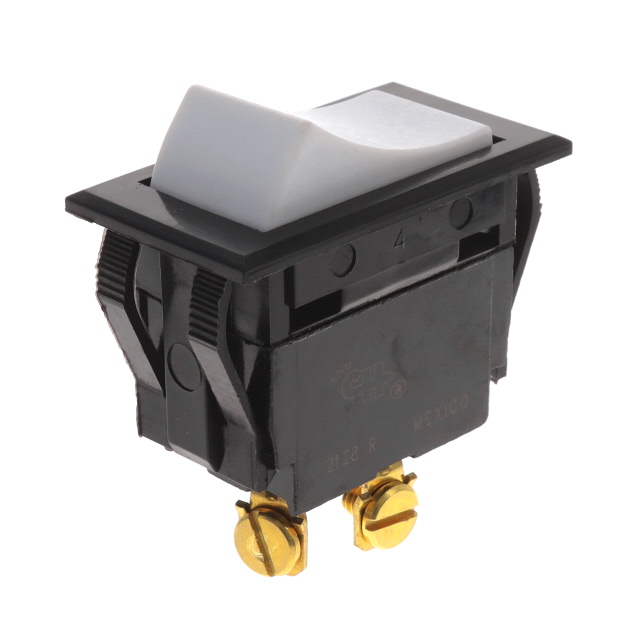

56000-08

Active

Cole Hersee

SWITCH ROCKER SPST 25A 12V

Search across all available documentation for this part.

Active

Cole Hersee

SWITCH ROCKER SPST 25A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST 25A (DC) Panel Mount, Snap-In

Technical documentation and resources

No documents available

Specification	56000-08	56000 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Concave (Curved)	Concave (Curved), Concave (Standard V)
Circuit	SPST	SPST
Color - Actuator/Cap	White	White, Black
Current Rating (Amps)	25 A	25 A
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	36.83 mm	36.83 mm
Panel Cutout Dimensions [y]	21.08 mm	21.08 mm
Switch Function	On-Off	On-Off
Termination Style	Screw Terminal	Screw Terminal
Voltage Rating - DC	12 V	12 V

Part	Circuit	Voltage Rating - DC	Actuator Marking	Current Rating (Amps)	Color - Actuator/Cap	Switch Function	Actuator Type	Termination Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type
Cole Hersee 56000-08	SPST	12 V	No Marking	25 A	White	On-Off	Concave (Curved)	Screw Terminal	21.08 mm	36.83 mm	Panel Mount, Snap-In
Cole Hersee 56000-04	SPST	12 V	No Marking	25 A	Black	On-Off	Concave (Standard V)	Screw Terminal	21.08 mm	36.83 mm	Panel Mount, Snap-In
