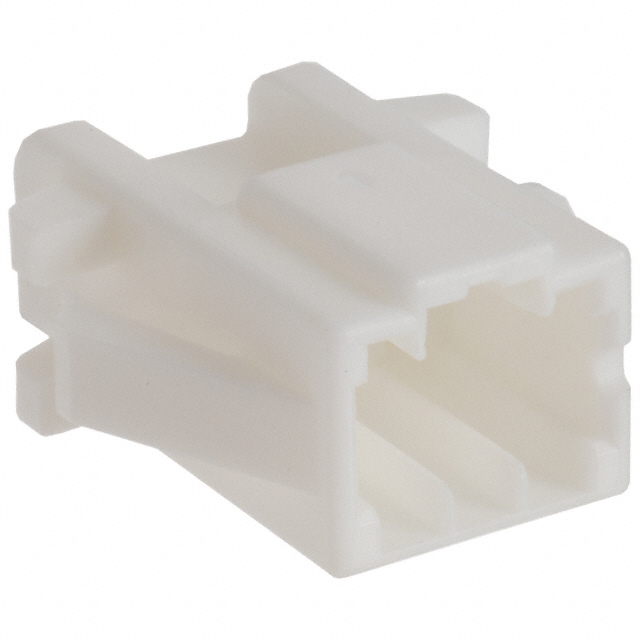

Specification	DF1E-3EP-2.5C

Color	White
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Material	Nylon, Polyamide (PA)
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Number of Positions	3
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-35 °C
Pitch	0.098 in

DF1E Series

...

Part	Contact Length - Mating	Contact Material	Contact Finish - Post	Number of Positions Loaded	Contact Finish Thickness - Mating	Fastening Type	Termination	Insulation Height	Material Flammability Rating	Number of Positions	Insulation Material	Pitch - Mating	Contact Type	Operating Temperature (Max)	Operating Temperature (Min)	Contact Shape	Contact Length - Post	Contact Finish - Mating	Mounting Type	Current Rating	Connector Type	Number of Rows	Insulation Color	Style	Shrouding	Mated Stacking Height Options
Hirose Electric Co Ltd DF1EG-2P-2.5DSA	0.177 in	Brass	Tin	All	39.4 µin	Latch Holder	Solder	0.642 in	UL94 V-0	2	Nylon Polyamide (PA)	0.098 in	Male Pin	85 °C	-35 °C	Square	0.118 in	Tin	Through Hole	3 A	Header	1	Natural	Board Cable/Wire	Shrouded - 4 Wall	14.3mm 15.8mm 19.8mm
Hirose Electric Co Ltd DF1EG-5P-2.5DSA(05)	0.177 in	Brass	Tin	All	39.4 µin	Latch Holder	Solder	0.642 in	UL94 V-0	5	Nylon Polyamide (PA)	0.098 in	Male Pin	85 °C	-35 °C	Square	0.118 in	Tin	Through Hole	3 A	Header	1	Natural	Board Cable/Wire	Shrouded - 4 Wall	14.3mm 15.8mm 19.8mm
Hirose Electric Co Ltd DF1EG-2P-2.5DSA(35)	0.177 in	Brass	Tin	All	39.4 µin	Latch Holder	Solder	0.642 in	UL94 V-0	2	Nylon Polyamide (PA)	0.098 in	Male Pin	85 °C	-35 °C	Square	0.118 in	Tin	Through Hole	3 A	Header	1	Natural	Board Cable/Wire	Shrouded - 4 Wall	14.3mm 15.8mm 19.8mm
Hirose Electric Co Ltd DF1EG-10P-2.5DSA(05)	0.177 in	Brass	Tin	All	39.4 µin	Latch Holder	Solder	0.642 in	UL94 V-0	10	Nylon Polyamide (PA)	0.098 in	Male Pin	85 °C	-35 °C	Square	0.118 in	Tin	Through Hole	3 A	Header	1	Natural	Board Cable/Wire	Shrouded - 4 Wall	14.3mm 15.8mm 19.8mm
Hirose Electric Co Ltd DF1EG-4P-2.5DSA(05)	0.177 in	Brass	Tin	All	39.4 µin	Latch Holder	Solder	0.642 in	UL94 V-0	4	Nylon Polyamide (PA)	0.098 in	Male Pin	85 °C	-35 °C	Square	0.118 in	Tin	Through Hole	3 A	Header	1	Natural	Board Cable/Wire	Shrouded - 4 Wall	14.3mm 15.8mm 19.8mm
Hirose Electric Co Ltd DF1EG-11P-2.5DSA(35)	0.177 in	Brass	Tin	All	39.4 µin	Latch Holder	Solder	0.642 in	UL94 V-0	11	Nylon Polyamide (PA)	0.098 in	Male Pin	85 °C	-35 °C	Square	0.118 in	Tin	Through Hole	3 A	Header	1	Natural	Board Cable/Wire	Shrouded - 4 Wall	14.3mm 15.8mm 19.8mm
Hirose Electric Co Ltd DF1EG-5P-2.5DSA	0.177 in	Brass	Tin	All	39.4 µin	Latch Holder	Solder	0.642 in	UL94 V-0	5	Nylon Polyamide (PA)	0.098 in	Male Pin	85 °C	-35 °C	Square	0.118 in	Tin	Through Hole	3 A	Header	1	Natural	Board Cable/Wire	Shrouded - 4 Wall	14.3mm 15.8mm 19.8mm
Hirose Electric Co Ltd DF1EG-3P-2.5DSA(05)	0.177 in	Brass	Tin	All	39.4 µin	Latch Holder	Solder	0.642 in	UL94 V-0	3	Nylon Polyamide (PA)	0.098 in	Male Pin	85 °C	-35 °C	Square	0.118 in	Tin	Through Hole	3 A	Header	1	Natural	Board Cable/Wire	Shrouded - 4 Wall	14.3mm 15.8mm 19.8mm
Hirose Electric Co Ltd DF1EG-10P-2.5DSA(36)	0.177 in	Brass		All	8 µin	Latch Holder	Solder	0.642 in	UL94 V-0	10	Nylon Polyamide (PA)	0.098 in	Male Pin	85 °C	-35 °C	Square	0.118 in	Gold	Through Hole	3 A	Header	1	Natural	Board Cable/Wire	Shrouded - 4 Wall	14.3mm 15.8mm 19.8mm
Hirose Electric Co Ltd DF1EG-3P-2.5DSA	0.177 in	Brass	Tin	All	39.4 µin	Latch Holder	Solder	0.642 in	UL94 V-0	3	Nylon Polyamide (PA)	0.098 in	Male Pin	85 °C	-35 °C	Square	0.118 in	Tin	Through Hole	3 A	Header	1	Natural	Board Cable/Wire	Shrouded - 4 Wall	14.3mm 15.8mm 19.8mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

DF1E-3EP-2.5C | Datasheet
