Description
General part information

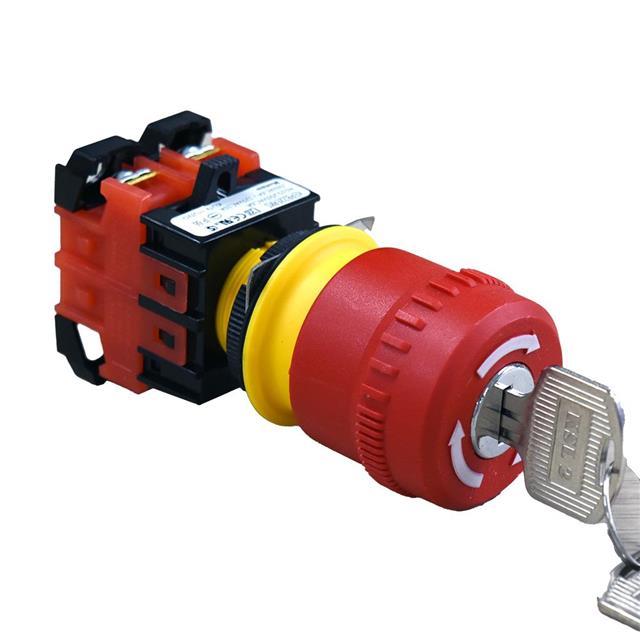

KEPB22ERK-02
SWITCH ESTOP TWIST RESET 3A 250V
Technical Specifications
Parameters and characteristics for this part
| Specification | KEPB22ERK-02 |
|---|---|
| Circuit | DPST-NC |
| Current Rating | 3 A |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -15 °C |
| Panel Cutout Diameter | 22 mm |
| Panel Cutout Shape | Circular |
| Quick Connect Size (0.110") | 0.11 in |
| Reset Operation | Twist |
| Switch Function | On-Off |
| Termination Style | Quick Connect, Solder |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 30 V |
