100007428

Active

Telegartner Inc

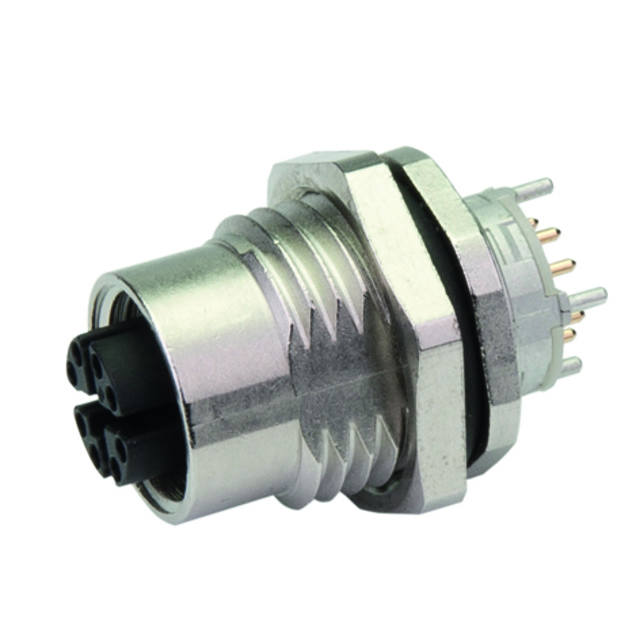

STX M12X1 BS X-COD. CAT.6A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100007428

Active

Telegartner Inc

STX M12X1 BS X-COD. CAT.6A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100007428	J80020 Series

Applications	Industrial	Industrial
Color	Silver	Silver, Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug, Insert
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze	Bronze
Current Rating (Amps)	0.5 A	0.5 A
Features	Board Guide	Board Guide, Insert Only, Requires Shell
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut, Bulkhead - Rear Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	8	8
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	X	X
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Brass and Zinc Die Cast	Brass and Zinc Die Cast
Shell Size - Insert	M12-8	M12-8
Shielding	Unshielded	Unshielded
Termination	Solder	Solder
Voltage Rating	50 VAC, 60 VDC	50 - 60 VAC

J80020 Series

CU-CN M12X-BS C6A THR 2PC

Part	Termination	Connector Type	Shielding	Orientation	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Features	Voltage Rating	Applications	Number of Positions	Mounting Type	Contact Finish - Mating	Color	Primary Material	Shell Size - Insert	Contact Material	Mounting Feature	Insert Material	Shell Finish	Current Rating (Amps)
Telegartner Inc 100007548	Solder	Female Sockets, Plug	Unshielded	X	IP67 - Dust Tight, Waterproof	85 °C	-40 °C	Brass and Zinc Die Cast	Board Guide	50 VAC, 60 VDC	Industrial	8	Panel Mount, Through Hole	Gold	Silver	Metal	M12-8	Bronze	Bulkhead - Front Side Nut	Nylon, Polyamide (PA)	Nickel	0.5 A
Telegartner Inc 100007428	Solder	Female Sockets, Plug	Unshielded	X	IP67 - Dust Tight, Waterproof	85 °C	-40 °C	Brass and Zinc Die Cast	Board Guide	50 VAC, 60 VDC	Industrial	8	Panel Mount, Through Hole	Gold	Silver	Metal	M12-8	Bronze	Bulkhead - Front Side Nut	Nylon, Polyamide (PA)	Nickel	0.5 A
Telegartner Inc 100007550	Solder	Female Sockets, Insert	Unshielded	X	IP67 - Dust Tight, Waterproof	85 °C	-40 °C		Board Guide, Insert Only, Requires Shell	50 VAC, 60 VDC	Industrial	8	Through Hole	Gold	Black		M12-8	Bronze		Nylon, Polyamide (PA)		0.5 A
Telegartner Inc 100007429	Solder	Female Sockets, Plug	Unshielded	X	IP67 - Dust Tight, Waterproof	85 °C	-40 °C	Brass and Zinc Die Cast	Board Guide	50 VAC, 60 VDC	Industrial	8	Panel Mount, Through Hole	Gold	Silver	Metal	M12-8	Bronze	Bulkhead - Rear Side Nut	Nylon, Polyamide (PA)	Nickel	0.5 A
Telegartner Inc 100007427	Solder	Female Sockets, Plug	Unshielded	X	IP67 - Dust Tight, Waterproof	85 °C	-40 °C	Brass and Zinc Die Cast	Board Guide	50 VAC, 60 VDC	Industrial	8	Panel Mount, Through Hole	Gold	Silver	Metal	M12-8	Bronze	Bulkhead - Front Side Nut	Nylon, Polyamide (PA)	Nickel	0.5 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 34.72
		10	$ 34.72
		25	$ 32.12
		50	$ 28.55

Description

General part information

J80020 Series

8 (Data) Position Circular Connector Plug, Female Sockets Solder
