35HDLNN

Active

Switchcraft Inc.

CONN PLUG STEREO 3.5MM 3COND

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG STEREO 3.5MM 3COND

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	35HDLNN	35HDLN Series

Actual Diameter [diameter]	0.139 in	0.139 in
Actual Diameter [diameter]	3.53 mm	3.53 mm
Body Color	Silver	Silver
Body Material	Copper Alloy	Copper Alloy
Cable Opening [custom]	7.37 mm	7.37 mm
Cable Opening [custom]	0.29 in	0.29 in
Connector Type	Phone Plug	Phone Plug
Contact Material	Copper Alloy	Copper Alloy
Contact Material - Plating [custom]	Silver	Silver, Gold
Current Rating (Amps)	4 A	4 A
Gender	Male	Male
Housing Material	Copper Alloy	Copper Alloy
Includes	1 Connector, 1 Insulator Tube, 1 Handle	1 Connector, 1 Insulator Tube, 1 Handle
Industry Recognized Mating Diameter	0.141 "	0.141 "
Industry Recognized Mating Diameter	0.125 "	0.125 "
Industry Recognized Mating Diameter	3.5 mm	3.5 mm
Mating Length/Depth	14.2 mm	14.2 mm
Mating Length/Depth	0.56 in	0.56 in
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	3	3
Number of Positions/Contacts [custom]	3	3
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Shielding	Unshielded	Unshielded
Signal Lines	Stereo	Stereo
Termination	Solder Eyelet(s)	Solder Eyelet(s)

CONN PLUG STEREO 3.5MM 3COND

Part	Shielding	Body Material	Termination	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Mounting Type	Includes	Contact Material	Connector Type	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Cable Opening [custom]	Cable Opening [custom]	Gender	Mating Length/Depth	Mating Length/Depth	Operating Temperature [Max]	Operating Temperature [Min]	Body Color	Housing Material	Signal Lines	Actual Diameter [diameter]	Actual Diameter [diameter]	Current Rating (Amps)	Contact Material - Plating [custom]
Switchcraft Inc. 35HDLNN	Unshielded	Copper Alloy	Solder Eyelet(s)	0.141 "	0.125 "	3.5 mm	Free Hanging (In-Line)	1 Connector, 1 Handle, 1 Insulator Tube	Copper Alloy	Phone Plug	3	3	7.37 mm	0.29 in	Male	14.2 mm	0.56 in	85 °C	-20 C	Silver	Copper Alloy	Stereo	0.139 in	3.53 mm	4 A	Silver
Switchcraft Inc. 35HDLNAU	Unshielded	Copper Alloy	Solder Eyelet(s)	0.141 "	0.125 "	3.5 mm	Free Hanging (In-Line)	1 Connector, 1 Handle, 1 Insulator Tube	Copper Alloy	Phone Plug	3	3	7.37 mm	0.29 in	Male	14.2 mm	0.56 in	85 °C	-20 C	Silver	Copper Alloy	Stereo	0.139 in	3.53 mm		Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

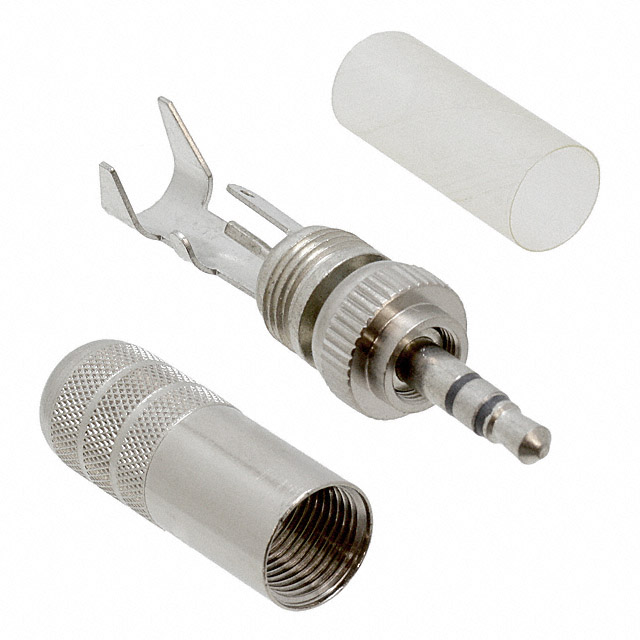

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)
