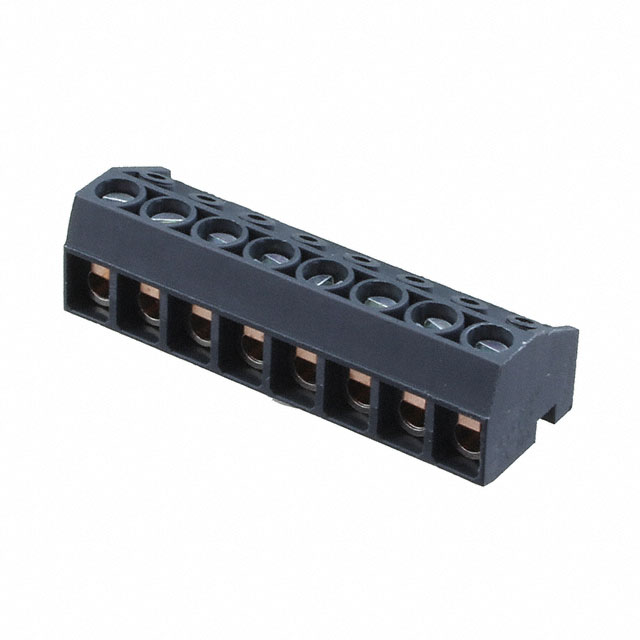

Specification	30.328

Color	Gray
Current - IEC	10 A
Current - UL	10 A
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	8
Pitch	0.197 in
Plug Wire Entry Angle	90 °
Positions Per Level	8
Termination Style	Screw - Rising Cage Clamp
Type	Plug for Unshrouded Header
Voltage - IEC	250 V
Voltage - UL	300 V
Wire Gauge or Range - AWG (Max)	22 AWG
Wire Gauge or Range - AWG (Min)	14 AWG
Wire Gauge or Range - mm² (Maximum)	1.5 mm²
Wire Gauge or Range - mm² (Minimum)	0.5 mm²
