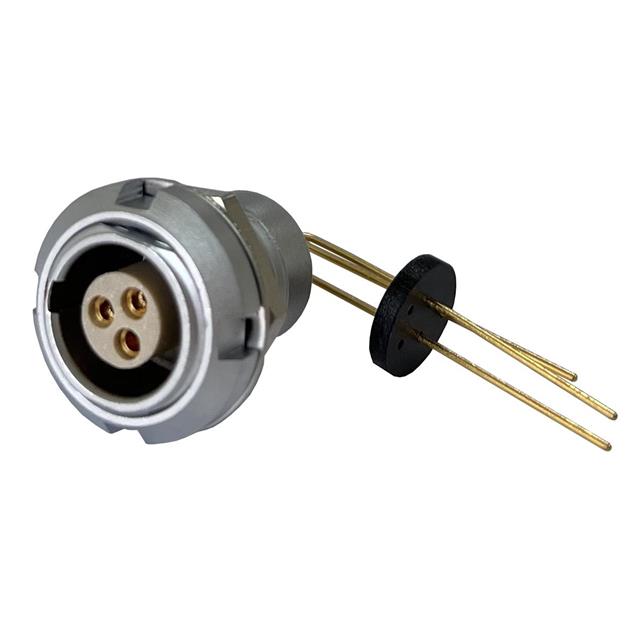

Specification	MMI-M0RSG03PR

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating	7 A
Fastening Type	Push-Pull
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Insert Material	Polyphenylene Sulfide, PPS
Mounting Feature	Rear Side Nut, Bulkhead
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions	3
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shielding	Unshielded
Termination	Solder
Voltage Rating	250 V

MMI-M0RSG Series

Part	Mounting Feature	Termination	Fastening Type	Shell Finish	Contact Material	Orientation	Color	Current Rating	Number of Positions	Shell Material	Shielding	Insert Material	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Mounting Type	Primary Material	Ingress Protection Description	Ingress Protection IP Rating	Contact Finish - Mating	Connector Type
Adam Tech MMI-M0RSG06P	Bulkhead Rear Side Nut	Solder	Push-Pull	Chrome	Brass	G	Silver	2.5 A	6	Brass	Unshielded	Polyphenylene Sulfide PPS	150 °C	-55 °C	200 VDC	Panel Mount Through Hole	Metal	Dust Protected	IP50	Gold	Female Sockets Receptacle
Adam Tech MMI-M0RSG04S	Bulkhead Rear Side Nut	Solder Cup	Push-Pull	Chrome	Brass	G	Silver	5 A	4	Brass	Unshielded	Polyphenylene Sulfide PPS	150 °C	-55 °C	200 VDC	Panel Mount	Metal	Dust Protected	IP50	Gold	Female Sockets Receptacle
Adam Tech MMI-M0RSG02S	Bulkhead Rear Side Nut	Solder Cup	Push-Pull	Chrome	Brass	G	Silver	8 A	2	Brass	Unshielded	Polyphenylene Sulfide PPS	150 °C	-55 °C	250 V	Panel Mount	Metal	Dust Protected	IP50	Gold	Female Sockets Receptacle
Adam Tech MMI-M0RSG05PR	Bulkhead Rear Side Nut	Solder	Push-Pull	Chrome	Brass	G	Silver	5 A	5	Brass	Unshielded	Polyphenylene Sulfide PPS	150 °C	-55 °C	200 VDC	Panel Mount Right Angle Through Hole	Metal	Dust Protected	IP50	Gold	Female Sockets Receptacle
Adam Tech MMI-M0RSG06S	Bulkhead Rear Side Nut	Solder Cup	Push-Pull	Chrome	Brass	G	Silver	2.5 A	6	Brass	Unshielded	Polyphenylene Sulfide PPS	150 °C	-55 °C	200 VDC	Panel Mount	Metal	Dust Protected	IP50	Gold	Female Sockets Receptacle
Adam Tech MMI-M0RSG05S-IP67	Bulkhead Rear Side Nut	Solder Cup	Push-Pull	Chrome	Brass	G	Silver	5 A	5	Brass	Unshielded	Polyphenylene Sulfide PPS	150 °C	-55 °C	200 VDC	Panel Mount	Metal	Dust Tight Waterproof	IP67	Gold	Female Sockets Receptacle
Adam Tech MMI-M0RSG05P	Bulkhead Rear Side Nut	Solder	Push-Pull	Chrome	Brass	G	Silver	5 A	5	Brass	Unshielded	Polyphenylene Sulfide PPS	150 °C	-55 °C	200 VDC	Panel Mount Through Hole	Metal	Dust Protected	IP50	Gold	Female Sockets Receptacle
Adam Tech MMI-M0RSG04P	Bulkhead Rear Side Nut	Solder	Push-Pull	Chrome	Brass	G	Silver	5 A	4	Brass	Unshielded	Polyphenylene Sulfide PPS	150 °C	-55 °C	200 VDC	Panel Mount Through Hole	Metal	Dust Protected	IP50	Gold	Female Sockets Receptacle
Adam Tech MMI-M0RSG07S-IP67	Bulkhead Rear Side Nut	Solder Cup	Push-Pull	Chrome	Brass	G	Silver	2 A	7	Brass	Unshielded	Polyphenylene Sulfide PPS	150 °C	-55 °C	200 VDC	Panel Mount	Metal	Dust Tight Waterproof	IP67	Gold	Female Sockets Receptacle
Adam Tech MMI-M0RSG02P	Bulkhead Rear Side Nut	Solder	Push-Pull	Chrome	Brass	G	Silver	8 A	2	Brass	Unshielded	Polyphenylene Sulfide PPS	150 °C	-55 °C	250 V	Panel Mount Through Hole	Metal	Dust Protected	IP50	Gold	Female Sockets Receptacle
