FMCN44128
ActiveFairview Microwave
CONN JACK SOLDER MINI SMB
FMCN44128
ActiveFairview Microwave
CONN JACK SOLDER MINI SMB
Description
General part information
FMCN44128

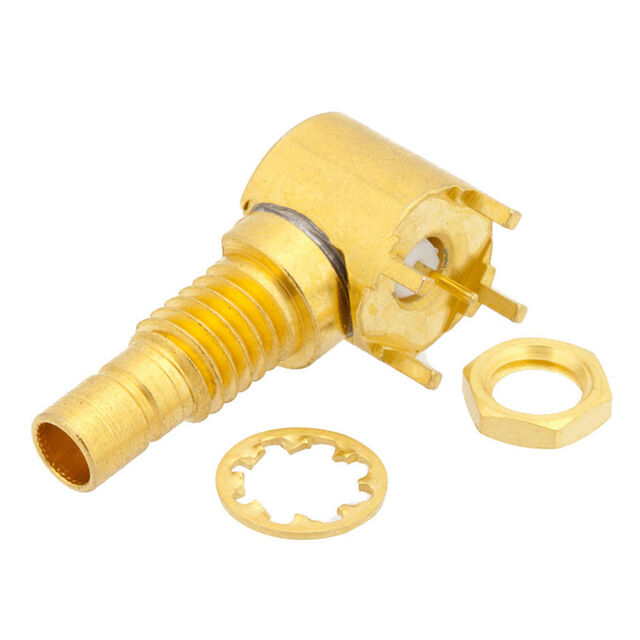

SMB Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCN44128 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMB |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max | 2 GHz |
| Housing Color | Gold |
| Impedance | 75 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
