Description
General part information
OGE700

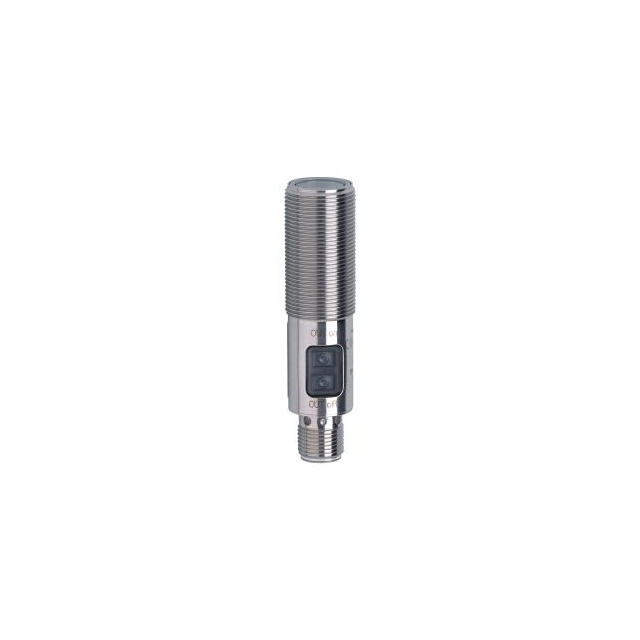

Through-Beam Optical Sensor 2.362" (60mm) PNP - Dark-ON/Light-ON - Selectable
Technical Specifications
Parameters and characteristics for this part
| Specification | OGE700 |
|---|---|
| Connection Method | Connector, M12 |
| Ingress Protection | IP65, IP67 |
| Light Source | Red |
| Light Source Wavelength (Red) | 655 nm |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Output Configuration | Light-ON - Selectable, Dark-ON, Selectable, Light-ON, PNP, PNP - Dark-ON |
| Sensing Distance | 2.362 " |
| Sensing Method | Through-Beam |
| Voltage - Supply (Maximum) | 36 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
