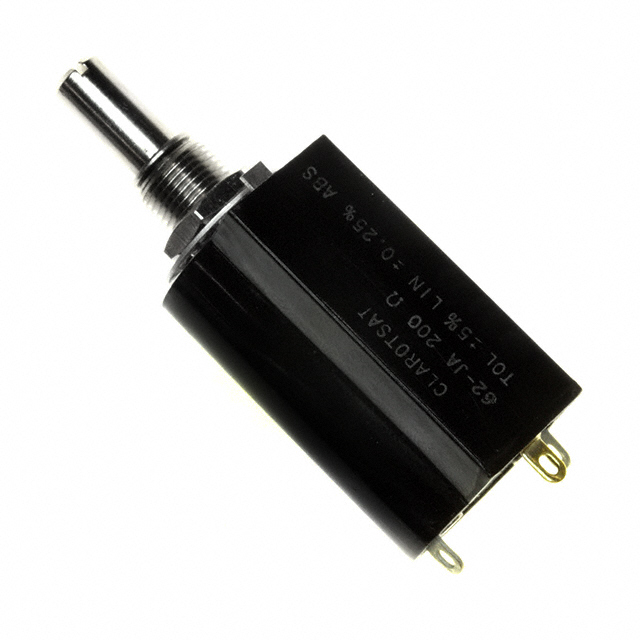

62JA200
ObsoleteHoneywell Sensing and Productivity Solutions
POT 200 OHM 2W WIREWOUND LINEAR
62JA200
ObsoleteHoneywell Sensing and Productivity Solutions
POT 200 OHM 2W WIREWOUND LINEAR
Description
General part information
62JA200
200 Ohm 1 Gang Linear Panel Mount Potentiometer 10.0 Turns Wirewound 2W Solder Lug
Technical Specifications
Parameters and characteristics for this part
| Specification | 62JA200 |
|---|---|
| Actuator Diameter | 0.249 in |
| Actuator Length | 0.937 in |
| Actuator Type | Slotted |
| Adjustment Type | User Defined |
| Built in Switch | None |
| Bushing Thread | 3/8-32 |
| Mounting Type | Panel Mount |
| Number of Gangs | 1 |
| Number of Turns | 10 turns |
| Power (Watts) | 2 w |
| Resistance | 200 Ohm |
| Resistive Material | Wirewound |
| Rotation | 3600 ° |
| Size - Body Diameter | 0.875 in |
| Size - Body Shape | Round |
| Taper | Linear |
| Temperature Coefficient | 20 ppm/¯C |
| Termination Style | Solder Lug |
| Tolerance | 5 % |
