WLS28-2XW850XPBQ

Active

BANNER ENGINEERING

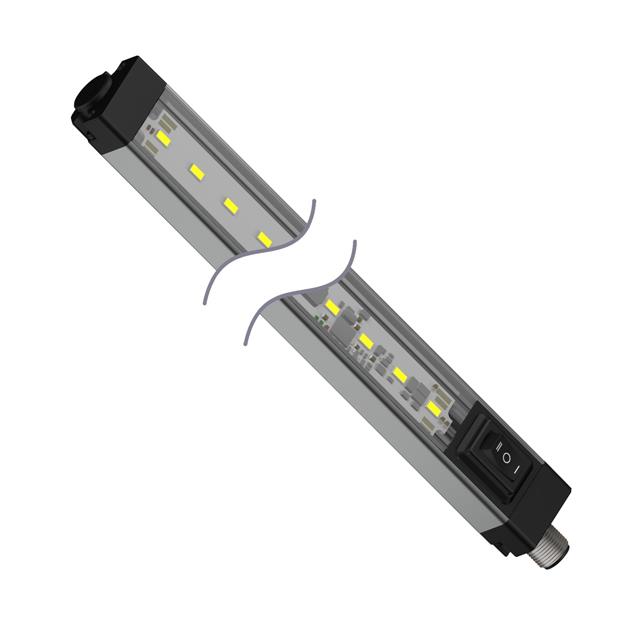

WLS28-2 WORK LIGHT STRIP; SWITCH

Search across all available documentation for this part.

Active

BANNER ENGINEERING

WLS28-2 WORK LIGHT STRIP; SWITCH

Technical Specifications

Parameters and characteristics for this part

Specification	WLS28-2XW850XPBQ

Approval Agency	cULus, CE
Features	High/Low/Off Switching, Cascadable
Housing Material	Aluminum (Al)
Illumination Color	White, Cool
Ingress Protection	IP50
Lens Type	Flat, Clear
Luminous Flux	2400 lm
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Profile (W x H) [x]	28 mm
Profile (W x H) [x]	1.1 in
Profile (W x H) [y]	21 mm
Profile (W x H) [y]	0.83 in
Rated Life	75000 Hours
Termination Style	Connector (M12)
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 429.00
Newark	Each	1	$ 429.00

General part information

WLS28-2 WORK LIGHT STRIP; SWITCH

Technical documentation and resources
