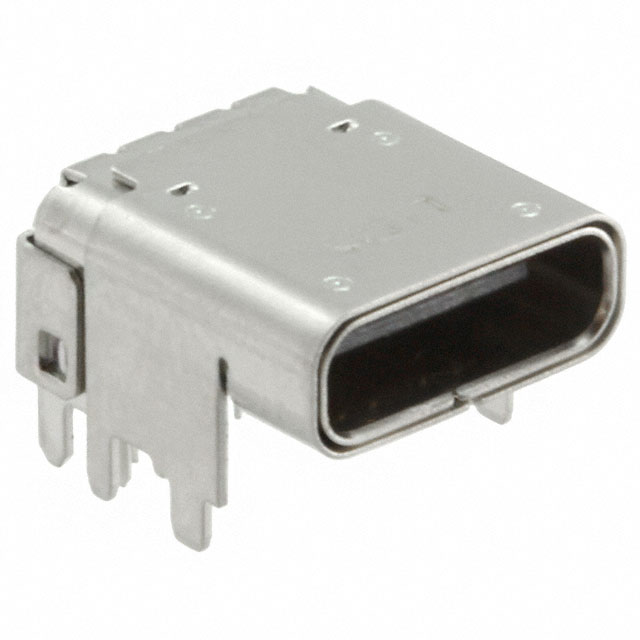

C-ARA1-AK512

Active

CnC Tech, LLC

CONN RCP USB3.0 TYPEC 24P SMD RA

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN RCP USB3.0 TYPEC 24P SMD RA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C-ARA1-AK512	C-ARA1-AK Series

Connector Type	USB-C (USB TYPE-C)	USB-C (USB TYPE-C)
Contact Finish	Gold	Gold
Current Rating (Amps)	5 A	5 A
Gender	Receptacle	Receptacle
Insulation Color	Black	Black
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	10000	10000
Mounting Feature	Horizontal	Horizontal
Mounting Type	Through Hole, Surface Mount, Right Angle	Through Hole, Surface Mount, Right Angle
Number of Contacts	24	24
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Termination	Solder	Solder

CONN RCP USB3.0 TYPEC 24P SMD RA

Part	Current Rating (Amps)	Insulation Color	Mounting Type	Gender	Connector Type	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Number of Contacts	Termination	Mounting Feature	Contact Finish	Number of Ports	Material Flammability Rating
CnC Tech, LLC C-ARA1-AK515-1	5 A	Black	Surface Mount, Right Angle, Through Hole	Receptacle	USB-C (USB TYPE-C)	10000	85 °C	-40 °C	24	Solder	Horizontal	Gold	1	UL94 V-0
CnC Tech, LLC C-ARA1-AK511	5 A	Black	Surface Mount, Right Angle, Through Hole	Receptacle	USB-C (USB TYPE-C)	10000	85 °C	-40 °C	24	Solder	Horizontal	Gold	1	UL94 V-0
CnC Tech, LLC C-ARA1-AK512	5 A	Black	Surface Mount, Right Angle, Through Hole	Receptacle	USB-C (USB TYPE-C)	10000	85 °C	-40 °C	24	Solder	Horizontal	Gold	1	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-C (USB TYPE-C) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
