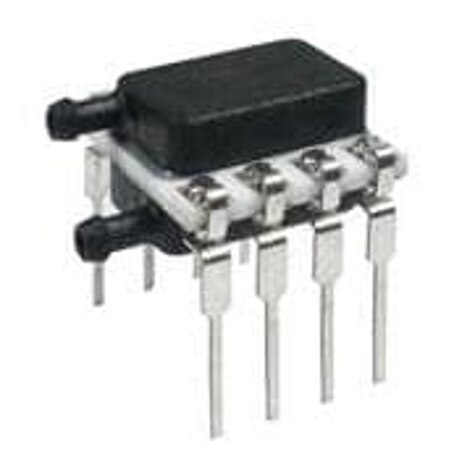

Specification	HSCDRRN002NG2A3

Accuracy	0.25 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure	9.76 PSI
Mounting Type	Through Hole
Operating Pressure	0.07 PSI
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-20 °C
Output Bits	12 b
Output Type	I2C
Package Features	Dual Ports, Same Side
Package Length	0.524 in
Package Name	8-DIP
Package Width	13.3 mm
Port Diameter	0.08 in
Port Feature	Dual, Tube
Port Gender	Male
Port Style	Barbed
Pressure Type	Vented Gauge
Termination Style	PC Pin
Voltage - Supply (Maximum)	3.33 V
Voltage - Supply (Minimum)	3.27 V

HSCDRRN Series

Part	Termination Style	Port Style	Package Length	Package Features	Package Name	Package Width	Accuracy	Mounting Type	Port Diameter	Port Gender	Port Feature	Features	Operating Pressure	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Applications	Pressure Type	Output Type	Maximum Pressure	Operating Temperature (Max)	Operating Temperature (Min)	Output Bits	Output Voltage (Max)	Output Voltage (Min)
Honeywell Sensing and Productivity Solutions HSCDRRN001NDSA5	PC Pin	Barbed	0.524 in	Dual Ports Same Side	8-DIP	13.3 mm	0.25 %	Through Hole	0.08 in	Male	Dual Tube	Amplified Output Temperature Compensated	0.04 PSI	5.05 V	4.95 V	Board Mount	Differential	SPI	9.76 PSI	85 °C	-20 °C	12 b
Honeywell Sensing and Productivity Solutions HSCDRRN010MDAA3	PC Pin	Barbed	0.524 in	Dual Ports Same Side	8-DIP	13.3 mm	0.25 %	Through Hole	0.08 in	Male	Dual Tube	Amplified Output Temperature Compensated	0.15 PSI	3.33 V	3.27 V	Board Mount	Differential	Analog Voltage	10.88 PSI	85 °C	-20 °C		2.97 V	0.33 V
Honeywell Sensing and Productivity Solutions HSCDRRN004NG3A3
Honeywell Sensing and Productivity Solutions HSCDRRN040MD2A3	PC Pin	Barbed	0.524 in	Dual Ports Same Side	8-DIP	13.3 mm	0.25 %	Through Hole	0.08 in	Male	Dual Tube	Amplified Output Temperature Compensated	0.58 PSI	3.33 V	3.27 V	Board Mount	Differential	I2C	12.33 PSI	85 °C	-20 °C	12 b
Honeywell Sensing and Productivity Solutions HSCDRRN160MDAA3	PC Pin	Barbed	0.524 in	Dual Ports Same Side	8-DIP	13.3 mm	0.25 %	Through Hole	0.08 in	Male	Dual Tube	Amplified Output Temperature Compensated	2.32 PSI	3.6 V	3 V	Board Mount	Differential	Analog Voltage	20.31 PSI	85 °C	-20 °C		2.97 V	0.33 V
Honeywell Sensing and Productivity Solutions HSCDRRN2.5MD2A5	PC Pin	Barbed	0.524 in	Dual Ports Same Side	8-DIP	13.3 mm	0.25 %	Through Hole	0.08 in	Male	Dual Tube	Amplified Output Temperature Compensated	0.04 PSI	5.05 V	4.95 V	Board Mount	Differential	I2C	9.79 PSI	85 °C	-20 °C	12 b
Honeywell Sensing and Productivity Solutions HSCDRRN100MD4A3
Honeywell Sensing and Productivity Solutions HSCDRRN100MD2A5	PC Pin	Barbed	0.524 in	Dual Ports Same Side	8-DIP	13.3 mm	0.25 %	Through Hole	0.08 in	Male	Dual Tube	Amplified Output Temperature Compensated	1.45 PSI	5.25 V	4.75 V	Board Mount	Differential	I2C	20.31 PSI	85 °C	-20 °C	12 b
Honeywell Sensing and Productivity Solutions HSCDRRN005PDSA3	PC Pin	Barbed	0.524 in	Dual Ports Same Side	8-DIP	13.3 mm	0.25 %	Through Hole	0.08 in	Male	Dual Tube	Amplified Output Temperature Compensated	5 PSI	3.6 V	3 V	Board Mount	Differential	SPI	30 PSI	85 °C	-20 °C	12 b
Honeywell Sensing and Productivity Solutions HSCDRRN100PDAA5	PC Pin	Barbed	0.524 in	Dual Ports Same Side	8-DIP	13.3 mm	0.25 %	Through Hole	0.08 in	Male	Dual Tube	Amplified Output Temperature Compensated	100 PSI	5.25 V	4.75 V	Board Mount	Differential	Analog Voltage		85 °C	-20 °C		4.5 V	0.5 V
