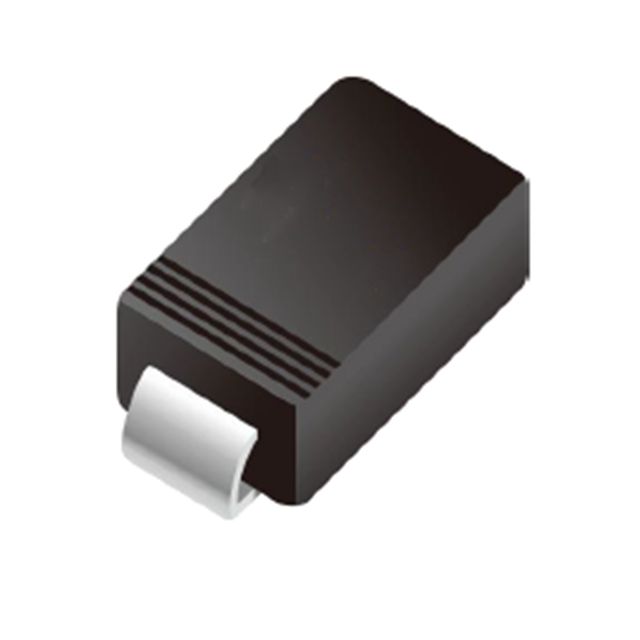

RS1M

Active

MDD

DIODE GEN PURP 1KV 1A SMA

Search across all available documentation for this part.

Active

MDD

DIODE GEN PURP 1KV 1A SMA

Technical Specifications

Parameters and characteristics for this part

Specification	RS1M

Capacitance @ Vr, F	15 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	DO-214AC, SMA
Reverse Recovery Time (trr)	500 ns
Speed	200 mA, 500 ns
Supplier Device Package	SMA
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1000 V
Voltage - Forward (Vf) (Max) @ If	1.3 V

DIODE GEN PURP 1KV 1A SMA

Part	Mounting Type	Capacitance @ Vr, F	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Package / Case	Reverse Recovery Time (trr)	Speed	Current - Reverse Leakage @ Vr	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]
MDD RS1M	Surface Mount	15 pF	Standard	150 °C	-55 °C	1 A	1.3 V	DO-214AC, SMA	500 ns	200 mA, 500 ns	5 µA	SMA	1000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 1000 V 1A Surface Mount SMA
