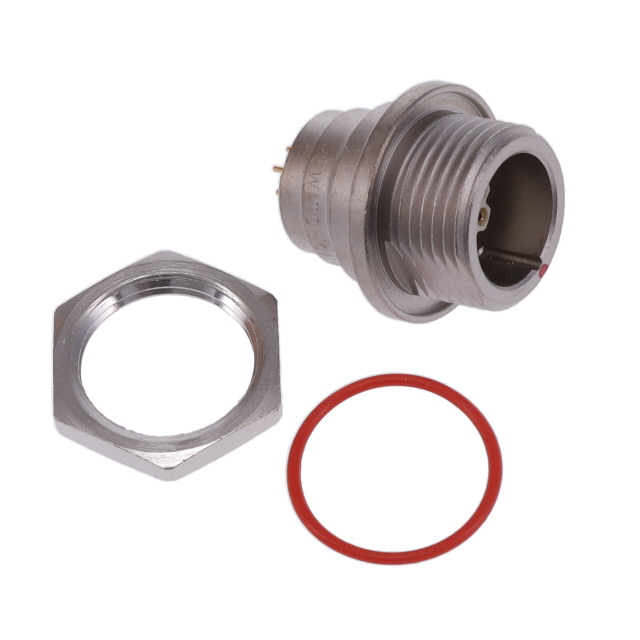

HS2P6F26-BP

Active

Switchcraft Inc.

CIRCULAR PUSH PULL CONNECTORS FRONT PANEL MOUNT PC CONTACT, 6-26 F

Search across all available documentation for this part.

Active

Switchcraft Inc.

CIRCULAR PUSH PULL CONNECTORS FRONT PANEL MOUNT PC CONTACT, 6-26 F

Technical Specifications

Parameters and characteristics for this part

Specification	HS2P6F26-BP

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Push-Pull
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	6
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Solder
Voltage Rating	30 VAC

Supercapacitors / Ultracapacitors .12F 3.8V ESR=200

Part	Applications	Contact Material	Voltage Rating	Fastening Type	Color	Orientation	Primary Material	Shell Finish	Contact Finish - Mating	Shielding	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Mounting Type	Number of Positions	Termination	Connector Type	Ingress Protection	Mounting Feature
Switchcraft Inc. HS2P6F26-BP	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Copper Alloy	30 VAC	Push-Pull	Silver	Keyed	Metal	Electroless Nickel	Gold	Shielded	Copper Alloy	135 °C	-40 °C	Liquid Crystal Polymer (LCP)	Panel Mount, Through Hole	6	Solder	Receptacle, Female Sockets	IP66, IP67, IP68	Bulkhead - Front Side Nut
