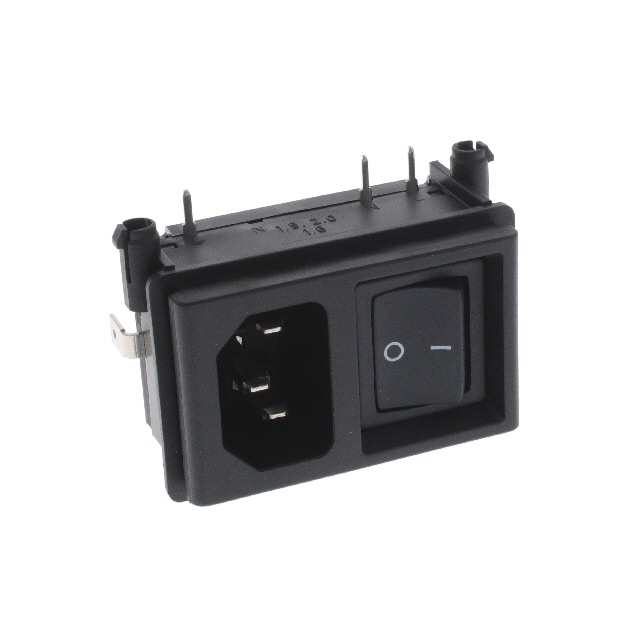

KP01.1112.11
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KP01.1112.11
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | KP01.1112.11 | KP01.1112 Series |
|---|---|---|
| Accomodates a Fuse | False | False |
| Approval Agency | VDE, CCC, cURus | VDE, CCC, cURus |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A | 10 A |
| Features | Terminating Cover, Board Lock | Terminating Cover, Board Lock |
| Filter Type | Unfiltered - Commercial | Unfiltered - Commercial |
| Ingress Protection | IP40 | IP40 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount, Snap-In | Through Hole, Right Angle, Panel Mount, Snap-In |
| Panel Cutout Dimensions | Variable Size | Variable Size |
| Panel Thickness | 2 mm | 2 mm |
| Panel Thickness | 0.079 in | 0.079 in |
| Switch Features | Switch On-Off | Switch On-Off |
| Termination | Solder | Solder |
| Voltage Rating - Appliance Inlet | 250 VAC | 250 VAC |
KP01.1112 Series
PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Ingress Protection | Connector Style | Mounting Type | Switch Features | Material Flammability Rating | Current Rating - Appliance Inlet | Panel Cutout Dimensions | Filter Type | Termination | Accomodates a Fuse | Connector Type | Approval Agency | Features | Panel Thickness | Panel Thickness | Voltage Rating - Appliance Inlet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. KP01.1112.11 | IP40 | IEC 320-C14 | Panel Mount, Snap-In, Through Hole, Right Angle | Switch On-Off | UL94 V-0 | 10 A | Variable Size | Unfiltered - Commercial | Solder | Receptacle, Male Blades - Module | CCC, cURus, VDE | Board Lock, Terminating Cover | 2 mm | 0.079 in | 250 VAC | |
SCHURTER Inc. KP01.1112.86 | IP40 | IEC 320-C14 | Switch On-Off | UL94 V-0 | 10 A | Variable Size | Unfiltered - Commercial | Receptacle, Male Blades - Module | CCC, cURus, VDE | Terminating Cover | 250 VAC | |||||
SCHURTER Inc. KP01.1112.81 | IP40 | IEC 320-C14 | Switch On-Off | UL94 V-0 | 10 A | Variable Size | Unfiltered - Commercial | Receptacle, Male Blades - Module | CCC, cURus, VDE | Terminating Cover | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.27 | |
| 50 | $ 11.10 | |||
| 100 | $ 10.48 | |||
Description
General part information
KP01.1112 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In; Through Hole, Right Angle
