S10KS15

Active

Switchcraft Inc.

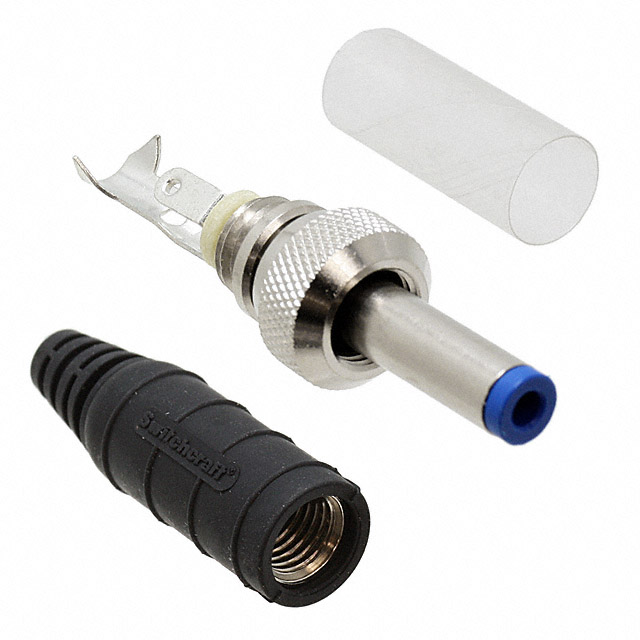

CONN PWR PLUG 2X5.5MM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S10KS15

Active

Switchcraft Inc.

CONN PWR PLUG 2X5.5MM SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	S10KS15	S10 Series

Body Color	Silver, Black	Silver, Black
Body Material	Copper Alloy	Copper Alloy
Connector Type	Plug	Plug
Contact Material	Copper Alloy	Copper Alloy
Contact Material - Plating	-	Tin
Contact Material - Plating [custom]	Silver	Silver
Current Rating (Amps)	11 A	11 A
Diameter - Inside	-	0.375 in
Diameter - Inside	-	0.375 in
Diameter - Inside	-	9.53 mm
Diameter - Outside	-	0.625 "
Diameter - Outside	-	0.625 in
Diameter - Outside	-	15.88 mm
Diameter - Shoulder	-	0.625 in
Diameter - Shoulder	-	15.88 mm
Diameter - Shoulder	-	0.625 in
Features	Thread Lock, Cable Clamp, Strain Relief	Strain Relief, Thread Lock, Cable Clamp
Gender	Female	Female
Housing Material	Elastomer	Elastomer
Includes	1 Connector, 1 Insulator Tube, 1 Handle	1 Connector, 1 Handle, 1 Insulator Tube
Industry Recognized Mating Diameter [diameter]	0.079 in, 0.217 "	0.079 - 0.217 in
Industry Recognized Mating Diameter [diameter]	2 mm, 5.5 mm	2 - 5.5 mm
Ingress Protection	IP68	IP68
Insulation Color	Blue	Blue
Internal Switch(s)	False	False
Length - Below Head	-	0.79 mm
Length - Below Head	-	0.031 in
Length - Below Head	-	0.03125 in
Material	-	Copper Alloy, Plastic, Fibre
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions/Contacts	3 Conductors, 2 Conductors	2 - 3 Conductors
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Plating	-	Nickel
Shielding	Unshielded	Unshielded
Termination	Solder	Solder
Thickness	-	0.02 in
Thickness	-	0.031 - 0.51 mm
Thickness	-	0.03125 in
Thickness	-	0.79 mm
Thickness - Overall	-	1.63 mm
Thickness - Overall	-	0.064 in
Thread/Screw/Hole Size	-	0.375 in
Type	-	Flat
Voltage - Rated	24 VDC	24 VDC

S10 Series

CONN PWR PLUG 2X5.5MM SOLDER

Part	Body Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Material	Housing Material	Gender	Shielding	Number of Positions/Contacts	Contact Material - Plating	Body Material	Features	Includes	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Termination	Mounting Type	Current Rating (Amps)	Insulation Color	Voltage - Rated	Contact Material - Plating [custom]	Ingress Protection	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Material	Plating	Thread/Screw/Hole Size	Thickness	Thickness	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Type	Thickness	Thickness	Diameter - Shoulder	Diameter - Shoulder	Diameter - Shoulder	Length - Below Head	Length - Below Head	Length - Below Head	Thickness - Overall	Thickness - Overall
Switchcraft Inc. S1017	Black, Silver	-40 °C	105 ░C	Plug	Copper Alloy	Elastomer	Female	Unshielded	2 Conductors, 3 Conductors	Tin	Copper Alloy	Strain Relief	1 Connector, 1 Handle	0.079 in, 0.217 "	2 mm, 5.5 mm	Solder	Free Hanging (In-Line)	11 A	Blue	24 VDC
Switchcraft Inc. S1012	Black, Silver	-40 °C	105 ░C	Plug	Copper Alloy	Elastomer	Female	Unshielded	2 Conductors, 3 Conductors	Tin	Copper Alloy	Strain Relief	1 Connector, 1 Handle	0.079 in, 0.217 "	2 mm, 5.5 mm	Solder	Free Hanging (In-Line)	11 A	Blue	24 VDC
Switchcraft Inc. S10KS15	Black, Silver	-40 °C	105 ░C	Plug	Copper Alloy	Elastomer	Female	Unshielded	2 Conductors, 3 Conductors		Copper Alloy	Cable Clamp, Strain Relief, Thread Lock	1 Connector, 1 Handle, 1 Insulator Tube	0.079 in, 0.217 "	2 mm, 5.5 mm	Solder	Free Hanging (In-Line)	11 A	Blue	24 VDC	Silver	IP68
Switchcraft Inc. S1015	Black, Silver	-40 °C	105 ░C	Plug	Copper Alloy	Elastomer	Female	Unshielded	2 Conductors, 3 Conductors	Tin	Copper Alloy	Strain Relief	1 Connector, 1 Handle	0.079 in, 0.217 "	2 mm, 5.5 mm	Solder	Free Hanging (In-Line)	11 A	Blue	24 VDC
Switchcraft Inc. S10451																							0.375 in	0.375 in	9.53 mm	Copper Alloy	Nickel	0.375 in	0.02 in	0.51 mm	0.625 "	0.625 in	15.88 mm	Flat
Switchcraft Inc. S1028																							0.375 in	0.375 in	9.53 mm	Plastic				0.031 in	0.625 "	0.625 in	15.88 mm	Flat	0.03125 in	0.79 mm
Switchcraft Inc. S10221																							0.375 in	0.375 in	9.53 mm		Nickel	0.375 in	0.02 in	0.51 mm	0.625 "	0.625 in	15.88 mm	Flat
Switchcraft Inc. S1029																							0.375 in	0.375 in	9.53 mm	Fibre		0.375 in			0.625 "	0.625 in	15.88 mm				0.625 in	15.88 mm	0.625 in	0.79 mm	0.031 in	0.03125 in	1.63 mm	0.064 in
Switchcraft Inc. S10KS12	Black, Silver	-40 °C	105 ░C	Plug	Copper Alloy	Elastomer	Female	Unshielded	2 Conductors, 3 Conductors		Copper Alloy	Cable Clamp, Strain Relief, Thread Lock	1 Connector, 1 Handle, 1 Insulator Tube	0.079 in, 0.217 "	2 mm, 5.5 mm	Solder	Free Hanging (In-Line)	11 A	Blue	24 VDC	Silver	IP68
Switchcraft Inc. S10KS17	Black, Silver	-40 °C	105 ░C	Plug	Copper Alloy	Elastomer	Female	Unshielded	2 Conductors, 3 Conductors		Copper Alloy	Cable Clamp, Strain Relief, Thread Lock	1 Connector, 1 Handle, 1 Insulator Tube	0.079 in, 0.217 "	2 mm, 5.5 mm	Solder	Free Hanging (In-Line)	11 A	Blue	24 VDC	Silver	IP68

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.74
		10	$ 12.10
		25	$ 10.94
		50	$ 10.16
		100	$ 9.45
		300	$ 8.46
		500	$ 8.05
		1000	$ 7.54

Description

General part information

S10 Series

Power Barrel Connector Plug 2.00mm ID (0.079"), 5.50mm OD (0.217") Free Hanging (In-Line)
