SSL-LX5099SISUGW

Active

Lumex Opto/Components Inc.

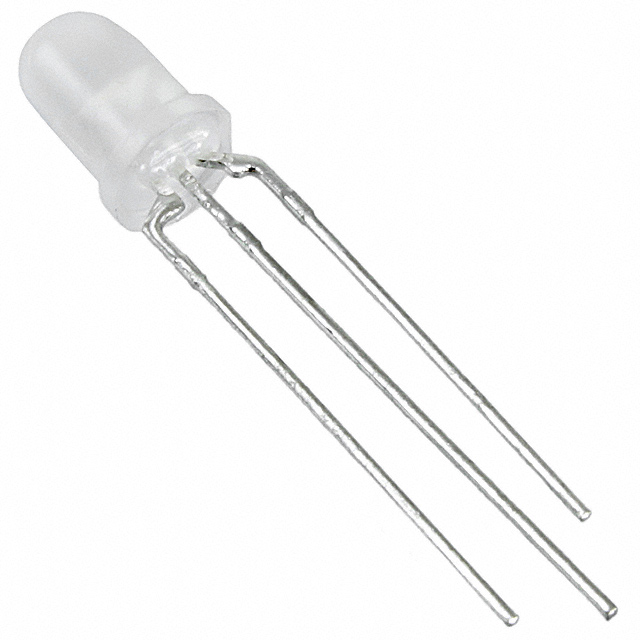

LED GRN/RED DIFFUSED T-1 3/4 T/H

Deep-Dive with AI

Search across all available documentation for this part.

SSL-LX5099SISUGW

Active

Lumex Opto/Components Inc.

LED GRN/RED DIFFUSED T-1 3/4 T/H

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.40
		10	$ 0.89
		500	$ 0.60
		1000	$ 0.50
		5000	$ 0.46
		10000	$ 0.45

Description

General part information

SSL-LX5099 Series

Green, Red LED Indication - Discrete 2.1V Green, 2V Red Radial - 3 Leads

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSL-LX5099SISUGW	SSL-LX5099 Series

Color	Red, Green	Blue, Red, Orange, Green, Yellow
Configuration	-	Independent, Standard, Common Anode, Common Cathode
Current - Test	20 mA, 20 mA	10.5 - 20 mA
Current - Test	-	20 mA
Current - Test	-	20 mA
Current - Test	-	20mA Red, 20mA Yellow
Height (Max) [Max] [z]	11 mm	8.6 - 11 mm
Lens Color	White	White, Red, Colorless
Lens Size	-	T-1 3/4
Lens Size	-	5 mm
Lens Size [diameter]	5 mm Dia	5 mm Dia
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Diffused	Diffused, Clear
Millicandela Rating	-	80 mcd
Millicandela Rating	-	0.01 mcd
Millicandela Rating	-	900 mcd
Millicandela Rating	-	400 - 500 mcd
Millicandela Rating	-	6mcd Red, 6mcd Green, 20mcd Yellow, 20mcd Green
Millicandela Rating [custom]	700 mcd	55 - 800 mcd
Millicandela Rating [custom]	200 mcd	20 - 200 mcd
Mounting Type	Through Hole	Through Hole
Package / Case	Radial - 3 Leads	Radial, Radial - 3 Leads
Size / Dimension	-	5 mm
Supplier Device Package	T-1 3/4	T-1 3/4
Viewing Angle	60 °	30 - 60 °
Voltage - Forward (Vf) (Typ)	2 V, 2.1 V	1.7 - 3.5 V
Wavelength - Peak	-	470 - 660 nm
Wavelength - Peak [custom]	636 nm	636 nm
Wavelength - Peak [custom]	574 nm	574 nm

SSL-LX5099 Series

LED BLUE/RED DIFF T-1 3/4 T/H

Part	Lens Size	Lens Size	Lens Transparency	Height (Max) [Max] [z]	Lens Color	Voltage - Forward (Vf) (Typ)	Viewing Angle	Mounting Type	Lens Style	Supplier Device Package	Wavelength - Peak	Package / Case	Color	Configuration	Current - Test [custom]	Current - Test [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Size / Dimension [diameter]	Millicandela Rating	Current - Test	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test	Millicandela Rating [custom]	Millicandela Rating
Lumex Opto/Components Inc. SSL-LX5099USBSIW	T-1 3/4	5 mm	Diffused	8.6 mm	White	2 V, 3.5 V	60 °	Through Hole	Round with Domed Top	T-1 3/4	470 nm, 636 nm	Radial	Blue, Red	Independent	20 mA	20 mA	80 mcd	100 mcd	5 mm
Lumex Opto/Components Inc. SSL-LX5099LBI-SRD	T-1 3/4	5 mm	Diffused	11 mm	Red		60 °	Through Hole	Round with Domed Top	T-1 3/4	660 nm	Radial - 3 Leads	Red	Standard						0.01 mcd	10.5 mA
Lumex Opto/Components Inc. SSL-LX5099SOPGW	T-1 3/4	5 mm	Diffused	8.6 mm	White	2 V, 2.2 V	60 °	Through Hole	Round with Domed Top	T-1 3/4	555 nm, 610 nm	Radial	Green, Orange	Independent					5 mm		20 mA, 20 mA	900 mcd	20 mcd
Lumex Opto/Components Inc. SSL-LX5099IGW-02	T-1 3/4	5 mm	Diffused	8.6 mm	White	2 V, 2.2 V	60 °	Through Hole	Round with Domed Top	T-1 3/4	565 nm, 635 nm	Radial	Green, Red	Independent				55 mcd	5 mm		20 mA, 20 mA		45 mcd
Lumex Opto/Components Inc. SSL-LX5099SISYW	T-1 3/4	5 mm	Diffused	8.6 mm	White	2 V, 2 V	60 °	Through Hole	Round with Domed Top	T-1 3/4		Radial	Red, Yellow	Independent				800 mcd	5 mm					20mA Red, 20mA Yellow	500 mcd
Lumex Opto/Components Inc. SSL-LX5099IGW-CA	T-1 3/4	5 mm	Diffused	11 mm	White	2 V, 2.2 V	60 °	Through Hole	Round with Domed Top	T-1 3/4	565 nm, 635 nm	Radial - 3 Leads	Green, Red	Common Anode							20 mA, 20 mA					6mcd Green, 6mcd Red
Lumex Opto/Components Inc. SSL-LX5099IGW	T-1 3/4	5 mm	Diffused	11 mm	White	2 V, 2.2 V	60 °	Through Hole	Round with Domed Top	T-1 3/4	565 nm, 635 nm	Radial - 3 Leads	Green, Red	Common Cathode				55 mcd			20 mA, 20 mA		45 mcd
Lumex Opto/Components Inc. SSL-LX5099GIW	T-1 3/4	5 mm	Diffused	11 mm	White	2 V, 2.2 V	60 °	Through Hole	Round with Domed Top	T-1 3/4	565 nm, 635 nm	Radial - 3 Leads	Green, Red	Common Cathode				55 mcd			20 mA, 20 mA		45 mcd
Lumex Opto/Components Inc. SSL-LX5099YGW-CA	T-1 3/4	5 mm	Diffused	11 mm	White	2.1 V, 2.2 V	60 °	Through Hole	Round with Domed Top	T-1 3/4	565 nm, 585 nm	Radial - 3 Leads	Green, Yellow	Common Anode							20 mA, 20 mA					20mcd Green, 20mcd Yellow
Lumex Opto/Components Inc. SSL-LX5099SRSGC/R	T-1 3/4	5 mm	Clear	11 mm	Colorless	1.7 V, 2.2 V	30 °	Through Hole	Round with Domed Top	T-1 3/4	565 nm, 660 nm	Radial - 3 Leads	Green, Red	Common Cathode				500 mcd			20 mA, 20 mA		140 mcd
