IMSA-13065S-2-12Y502

Active

IRISO USA Inc.

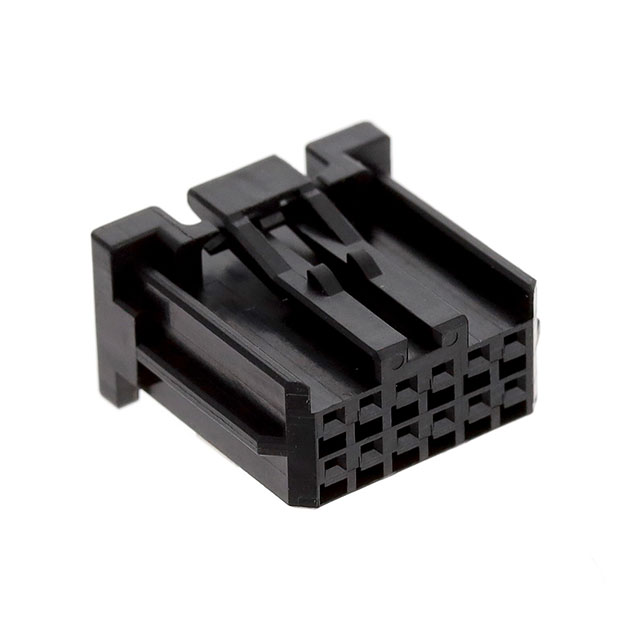

CONN RCPT HSG 12POS 2.00MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IMSA-13065S-2-12Y502

Active

IRISO USA Inc.

CONN RCPT HSG 12POS 2.00MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.51
		10	$ 0.39
		25	$ 0.35
		40	$ 0.33
		80	$ 0.31
		230	$ 0.27
		440	$ 0.25
		945	$ 0.24

Description

General part information

IMSA-13065S Series

12 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

Specification	IMSA-13065S-2-12Y502	IMSA-13065S Series

Color	Black	Black
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Locking Ramp	Locking Ramp
Features	Retainer	Retainer
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	12	8 - 40
Number of Positions	-	16
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.079 in	0.079 in
Pitch [x]	2 mm	2 mm
Row Spacing	0.098 in	0.098 in
Row Spacing	2.5 mm	2.5 mm

Part	Mounting Type	Number of Rows	Row Spacing	Row Spacing	Connector Type	Contact Termination	Note	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Features	Color	Contact Type	Pitch [x]	Pitch [x]	Insulation Material	Fastening Type	Number of Positions
IRISO USA Inc. IMSA-13065S-2-12Y502	Free Hanging (In-Line)	2	0.098 in	2.5 mm	Receptacle	Crimp	Contacts Not Included	12	125 °C	-40 °C	Retainer	Black	Female Socket	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	Locking Ramp
IRISO USA Inc. IMSA-13065S-2-24Y500	Free Hanging (In-Line)	2	0.098 in	2.5 mm	Receptacle	Crimp	Contacts Not Included	24	125 °C	-40 °C	Retainer	Black	Female Socket	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	Locking Ramp
IRISO USA Inc. IMSA-13065S-2-28Y501	Free Hanging (In-Line)	2	0.098 in	2.5 mm	Receptacle	Crimp	Contacts Not Included	28	125 °C	-40 °C	Retainer	Black	Female Socket	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	Locking Ramp
IRISO USA Inc. IMSA-13065S-2-32Y501	Free Hanging (In-Line)	2	0.098 in	2.5 mm	Receptacle	Crimp	Contacts Not Included		125 °C	-40 °C	Retainer	Black	Female Socket	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	Locking Ramp
IRISO USA Inc. IMSA-13065S-2-28Y500	Free Hanging (In-Line)	2	0.098 in	2.5 mm	Receptacle	Crimp	Contacts Not Included	28	125 °C	-40 °C	Retainer	Black	Female Socket	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	Locking Ramp
IRISO USA Inc. IMSA-13065S-2-32Y500	Free Hanging (In-Line)	2	0.098 in	2.5 mm	Receptacle	Crimp	Contacts Not Included		125 °C	-40 °C	Retainer	Black	Female Socket	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	Locking Ramp
IRISO USA Inc. IMSA-13065S-16A	Free Hanging (In-Line)	2	0.098 in	2.5 mm	Receptacle	Crimp	Contacts Not Included		125 °C	-40 °C	Retainer	Black	Female Socket	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	Locking Ramp	16
IRISO USA Inc. IMSA-13065S-2-08Y501	Free Hanging (In-Line)	2	0.098 in	2.5 mm	Receptacle	Crimp	Contacts Not Included	8	125 °C	-40 °C	Retainer	Black	Female Socket	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	Locking Ramp
IRISO USA Inc. IMSA-13065S-32B	Free Hanging (In-Line)	2	0.098 in	2.5 mm	Receptacle	Crimp	Contacts Not Included		125 °C	-40 °C	Retainer	Black	Female Socket	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	Locking Ramp
IRISO USA Inc. IMSA-13065S-12A	Free Hanging (In-Line)	2	0.098 in	2.5 mm	Receptacle	Crimp	Contacts Not Included	12	125 °C	-40 °C	Retainer	Black	Female Socket	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	Locking Ramp
