0010013056
ActiveMolex

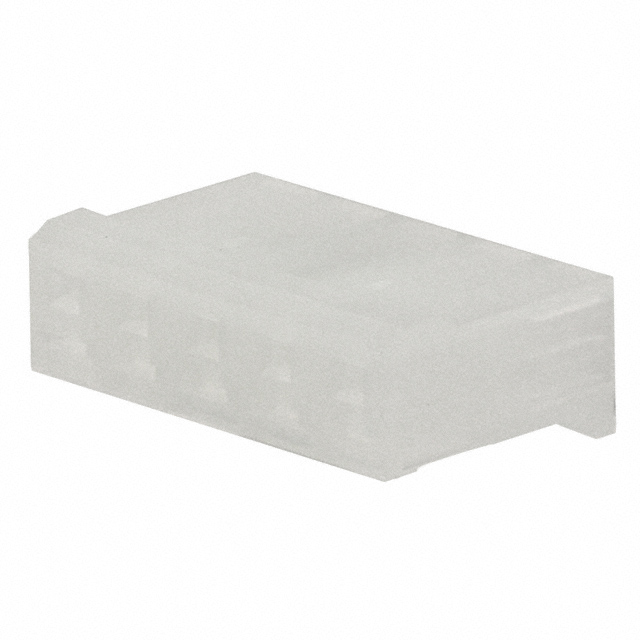

CONN RCPT HSG 5POS 5.08MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0010013056
ActiveMolex
CONN RCPT HSG 5POS 5.08MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 0010013056 | 001001 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Non-Gendered, Female Socket |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA), Nylon, Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | - | 9 - 11 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 0.2 in | 0.2 in |
| Pitch [x] | 5.08 mm | 5.08 mm |
001001 Series
CONN HOUSING RCP 11 POS 5.08MM CRIMP ST CABLE MOUNT NATURAL KK® BAG
| Part | Connector Type | Pitch [x] | Pitch [x] | Note | Color | Mounting Type | Contact Type | Number of Rows | Insulation Material | Number of Positions | Contact Termination | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex 0010011114 | Receptacle | 0.2 in | 5.08 mm | Contacts Not Included | Natural | Free Hanging (In-Line) | Non-Gendered | 1 | Nylon, Polyamide (PA) | 11 | Crimp | |||
Molex 0010013056 | Receptacle | 0.2 in | 5.08 mm | Contacts Not Included | Natural | Free Hanging (In-Line) | Female Socket | 1 | Polyamide (PA66), Nylon 6/6 | Crimp | Locking Ramp | -40 °C | 105 ░C | |
Molex 0010011104 | Receptacle | 0.2 in | 5.08 mm | Contacts Not Included | Natural | Free Hanging (In-Line) | Non-Gendered | 1 | Nylon, Polyamide (PA) | 10 | Crimp | |||
Molex 0010011094 | Receptacle | 0.2 in | 5.08 mm | Contacts Not Included | Natural | Free Hanging (In-Line) | Non-Gendered | 1 | Nylon, Polyamide (PA) | 9 | Crimp |
