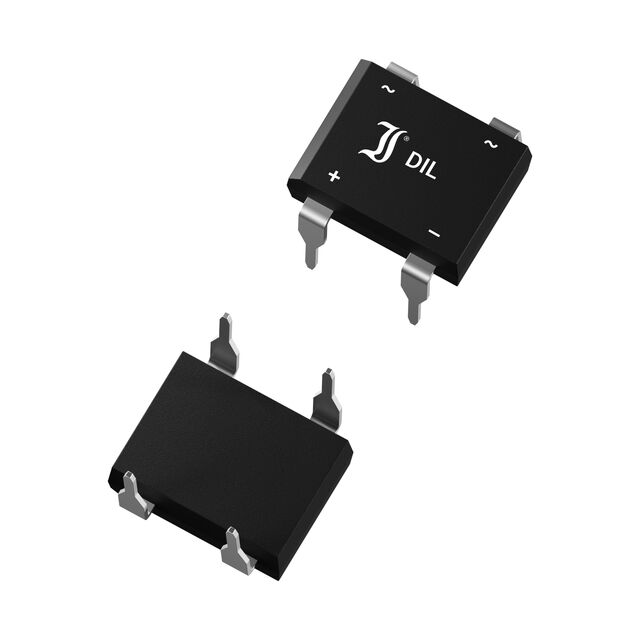

B125FD

Active

Diotec Semiconductor

BRIDGE RECT 1PHASE 250V 1A 4-DIL

Search across all available documentation for this part.

Active

Diotec Semiconductor

BRIDGE RECT 1PHASE 250V 1A 4-DIL

Technical Specifications

Parameters and characteristics for this part

Specification	B125FD

Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Package / Case	4-EDIP (0.300", 7.62mm)
Supplier Device Package	4-DIL
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.3 V
Voltage - Peak Reverse (Max) [Max]	250 V

BRIDGE RECT 1PHASE 250V 1A 4-DIL

Part	Operating Temperature [Max]	Operating Temperature [Min]	Diode Type	Voltage - Peak Reverse (Max) [Max]	Technology	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Mounting Type	Supplier Device Package	Package / Case
Diotec Semiconductor B125FD	150 °C	-50 °C	Single Phase	250 V	Standard	1 A	1.3 V	5 µA	Through Hole	4-DIL	4-EDIP (0.300", 7.62mm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 0.22

General part information

Bridge Rectifier Single Phase Standard 250 V Through Hole 4-DIL
