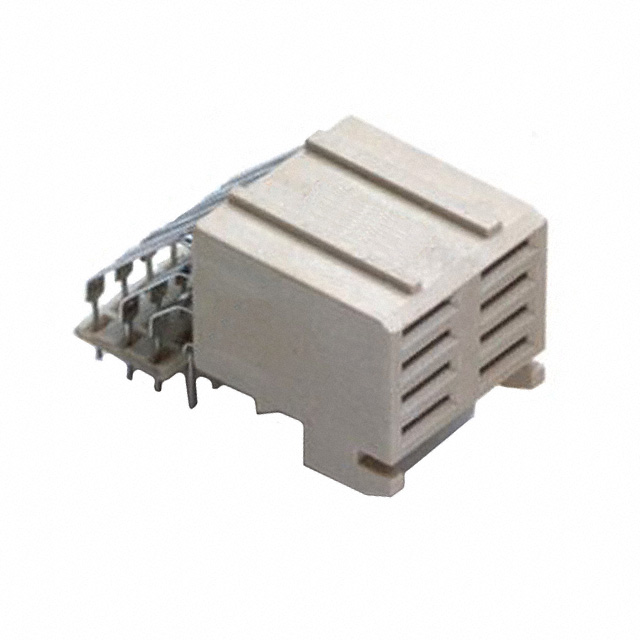

3M METPAK 2-FB POWER SOCKET, MP2 SERIES, MP2-SP10-51P1-KR
Deep-Dive with AI
Search across all available documentation for this part.
MP2-SP10-51P1-KR
Active3M
3M METPAK 2-FB POWER SOCKET, MP2 SERIES, MP2-SP10-51P1-KR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MP2-SP10-51P1-KR | MP2-SP10 Series |
|---|---|---|
| Color | Beige | Beige |
| Connector Style | Blade Power | Blade Power |
| Connector Type | Receptacle, Female Blade Sockets | Receptacle, Female Blade Sockets |
| Connector Usage | Backplane | Backplane |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.076 - 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 3 - 30 Áin |
| Contact Layout, Typical | 10 Power | 10 Power |
| Current Rating (Amps) | - | 1.5 A |
| Features | Spacer, Board Guide | Spacer, Board Guide, Mating Guide, Stackable, Guide Pin, Board Lock |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge | Through Hole, Right Angle, Board Edge, Through Hole, Right Angle |
| Number of Positions | 10 | 10 |
| Number of Positions Loaded | All | All |
| Number of Rows | 5 | 5 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch | - | 0.079 in |
| Pitch | - | 2 mm |
| Termination | Press-Fit | Press-Fit, Solder |
MP2-SP10 Series
CONN RCPT BLADE PWR 10P EDGE MNT
| Part | Number of Rows | Contact Finish | Number of Positions Loaded | Connector Usage | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Features | Material Flammability Rating | Termination | Number of Positions | Color | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Layout, Typical | Current Rating (Amps) | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5 | Gold | All | Backplane | 3 Áin | 0.076 Ám | Blade Power | Board Guide, Spacer | UL94 V-0 | Press-Fit | 10 | Beige | Receptacle, Female Blade Sockets | -55 °C | 125 °C | Board Edge, Right Angle, Through Hole | 10 Power | ||||
5 | Gold | All | 3 Áin | 0.076 Ám | Board Guide, Guide Pin, Mating Guide, Spacer, Stackable | UL94 V-0 | Solder | 10 | Beige | Receptacle, Female Blade Sockets | -55 °C | 125 °C | Through Hole, Right Angle | 1.5 A | 0.079 in | 2 mm | ||||
5 | Gold | All | Backplane | 30 Áin | 0.76 Ám | Blade Power | Board Guide, Spacer | UL94 V-0 | Press-Fit | 10 | Beige | Receptacle, Female Blade Sockets | -55 °C | 125 °C | Board Edge, Right Angle, Through Hole | 10 Power | ||||
5 | Gold | All | Backplane | 5 µin | 0.127 µm | Blade Power | Board Guide, Board Lock, Spacer | UL94 V-0 | Solder | 10 | Beige | Receptacle, Female Blade Sockets | -55 °C | 125 °C | Board Edge, Right Angle, Through Hole | 10 Power | ||||
5 | Gold | All | Backplane | 3 Áin | 0.076 Ám | Blade Power | Board Guide, Board Lock, Spacer | UL94 V-0 | Solder | 10 | Beige | Receptacle, Female Blade Sockets | -55 °C | 125 °C | Board Edge, Right Angle, Through Hole | 10 Power |
