J705-3-C52TB-DIS

Active

Whitman Controls, LLC

PRESSURE SWITCH 600-5000 PSIG

Search across all available documentation for this part.

Active

Whitman Controls, LLC

PRESSURE SWITCH 600-5000 PSIG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 183.01

General part information

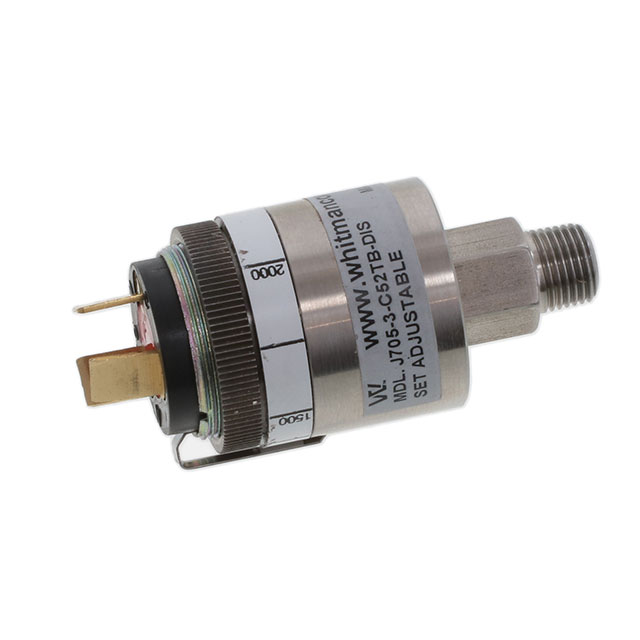

PRESSURE SWITCH 600-5000 PSIG

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	J705-3-C52TB-DIS	J705-3 Series

Accuracy	1034.21 kPa	1034.21 kPa
Accuracy	150 PSI	150 PSI
Maximum Pressure [Max]	20684.27 kPa	20684.27 kPa
Maximum Pressure [Max]	3000 PSI	3000 PSI
Operating Pressure [Max]	20684.27 kPa	20684.27 kPa
Operating Pressure [Max]	3000 PSI	3000 PSI
Operating Pressure [Min]	3447.38 kPa	3447.38 kPa
Operating Pressure [Min]	500 PSI	500 PSI
Operating Temperature [Max]	107 °C	107 °C
Operating Temperature [Min]	-54 °C	-54 °C
Output Type	SPDT	SPDT
Package / Case	Cylinder, Threaded	Cylinder, Threaded
Port Size	0.125 "	0.125 "
Port Size	3.18 mm	3.18 mm
Port Size	Male	Male
Port Style	Threaded	Threaded
Pressure Type	Switch	Switch
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm), Screw Terminal, Wire Leads

PRESSURE SWITCH 600-5000 PSIG

Part	Port Size	Port Size	Port Size	Output Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Termination Style	Accuracy	Accuracy	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Port Style	Pressure Type
Whitman Controls, LLC J705-3-C52TB-DIS	0.125 "	3.18 mm	Male	SPDT	20684.27 kPa	3000 PSI	Quick Connect - 0.250" (6.3mm)	1034.21 kPa	150 PSI	3447.38 kPa	20684.27 kPa	3000 PSI	500 PSI	-54 °C	107 °C	Cylinder, Threaded	Threaded	Switch
Whitman Controls, LLC J705-3-C12TS-DIS	0.125 "	3.18 mm	Male	SPDT	20684.27 kPa	3000 PSI	Screw Terminal	1034.21 kPa	150 PSI	3447.38 kPa	20684.27 kPa	3000 PSI	500 PSI	-54 °C	107 °C	Cylinder, Threaded	Threaded	Switch
Whitman Controls, LLC J705-3-C12L-DIS	0.125 "	3.18 mm	Male	SPDT	20684.27 kPa	3000 PSI	Wire Leads	1034.21 kPa	150 PSI	3447.38 kPa	20684.27 kPa	3000 PSI	500 PSI	-54 °C	107 °C	Cylinder, Threaded	Threaded	Switch
