SEIFCX-10
ActiveCurtis Industries

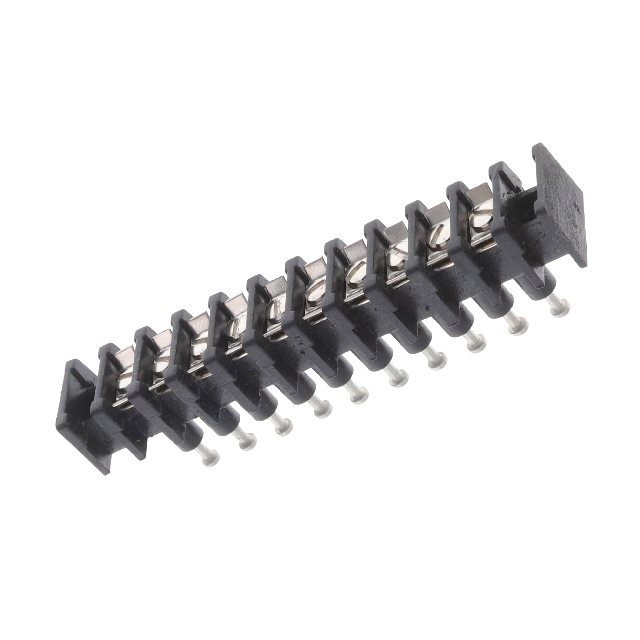

CONN BARRIER STRIP 10CIRC 0.25"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SEIFCX-10
ActiveCurtis Industries
CONN BARRIER STRIP 10CIRC 0.25"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SEIFCX-10 | SEIFCX Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | Solder Turret, Insulated | Solder Turret, Insulated |
| Current Rating (Amps) | 5 A | 5 A |
| Features | Flange | Flange |
| Material - Insulation | Polyphenylene Oxide (PPO) | Polyphenylene Oxide (PPO) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel, Chassis | Panel, Chassis |
| Number of Circuits | 10 | 2 - 16 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 10 | 2 - 16 |
| Operating Temperature | 110 °C | 110 °C |
| Pitch [x] | 0.25 in | 0.25 in |
| Pitch [x] | 6.35 mm | 6.35 mm |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Finish | Nickel | Nickel |
| Terminal Screw Material | Brass | Brass |
| Top Termination | Screws with Captive Plate | Screws with Captive Plate |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 16 AWG | 16 AWG |
SEIFCX Series
CONN BARRIER STRIP 16CIRC 0.25"
| Part | Pitch [x] | Pitch [x] | Barrier Type | Current Rating (Amps) | Bottom Termination | Operating Temperature | Number of Wire Entries | Top Termination | Terminal Screw Finish | Wire Gauge [Max] | Wire Gauge [Min] | Number of Circuits | Mounting Type | Terminal Screw Material | Features | Terminal Block Type | Material - Insulation | Number of Rows | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries SEIFCX-16 | 0.25 in | 6.35 mm | 2 Wall (Dual) | 5 A | Solder Turret, Insulated | 110 °C | 16 | Screws with Captive Plate | Nickel | 22 AWG | 16 AWG | 16 | Chassis, Panel | Brass | Flange | Barrier Block | Polyphenylene Oxide (PPO) | 1 | UL94 V-0 |
Curtis Industries SEIFCX-6 | 0.25 in | 6.35 mm | 2 Wall (Dual) | 5 A | Solder Turret, Insulated | 110 °C | 6 | Screws with Captive Plate | Nickel | 22 AWG | 16 AWG | 6 | Chassis, Panel | Brass | Flange | Barrier Block | Polyphenylene Oxide (PPO) | 1 | UL94 V-0 |
Curtis Industries SEIFCX-2 | 0.25 in | 6.35 mm | 2 Wall (Dual) | 5 A | Solder Turret, Insulated | 110 °C | 2 | Screws with Captive Plate | Nickel | 22 AWG | 16 AWG | 2 | Chassis, Panel | Brass | Flange | Barrier Block | Polyphenylene Oxide (PPO) | 1 | UL94 V-0 |
Curtis Industries SEIFCX-12 | 0.25 in | 6.35 mm | 2 Wall (Dual) | 5 A | Solder Turret, Insulated | 110 °C | 12 | Screws with Captive Plate | Nickel | 22 AWG | 16 AWG | 12 | Chassis, Panel | Brass | Flange | Barrier Block | Polyphenylene Oxide (PPO) | 1 | UL94 V-0 |
Curtis Industries SEIFCX-10 | 0.25 in | 6.35 mm | 2 Wall (Dual) | 5 A | Solder Turret, Insulated | 110 °C | 10 | Screws with Captive Plate | Nickel | 22 AWG | 16 AWG | 10 | Chassis, Panel | Brass | Flange | Barrier Block | Polyphenylene Oxide (PPO) | 1 | UL94 V-0 |
Curtis Industries SEIFCX-7 | 0.25 in | 6.35 mm | 2 Wall (Dual) | 5 A | Solder Turret, Insulated | 110 °C | 7 | Screws with Captive Plate | Nickel | 22 AWG | 16 AWG | 7 | Chassis, Panel | Brass | Flange | Barrier Block | Polyphenylene Oxide (PPO) | 1 | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.79 | |
Description
General part information
SEIFCX Series
10 Circuit 0.250" (6.35mm) Barrier Block Connector Screws with Captive Plate
