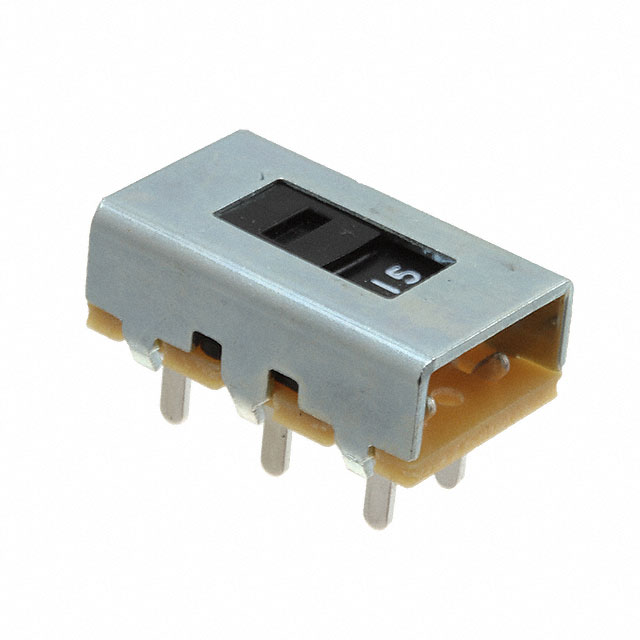

C46206LFRX

Active

Switchcraft Inc.

SWITCH SLIDE DPDT 3A 125V

Search across all available documentation for this part.

Active

Switchcraft Inc.

SWITCH SLIDE DPDT 3A 125V

Technical Specifications

Parameters and characteristics for this part

SWITCH SLIDE DPDT 3A 125V

Part	Voltage Rating - DC	Switch Travel	Contact Timing	Actuator Material	Termination Style	Features [Max]	Features [Min]	Current Rating (Amps)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Switch Function	Actuator Length	Actuator Type	Contact Material	Circuit
Switchcraft Inc. C46206LFRX	125 VDC	4.78 mm	Non-Shorting	Thermoplastic	PC Pin	230 V	115 V	3 A, 500 mA	Through Hole	-20 C	70 °C	125 V	On-On (Line Voltage Selector)	Flush	Screwdriver Slot	Copper Alloy	DPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Slide Switch DPDT Through Hole
