LS03-100J-RC
ActiveAllied Components International
10UH +/-5% FERRITE CORE CHIP
LS03-100J-RC
ActiveAllied Components International
10UH +/-5% FERRITE CORE CHIP
Description
General part information
LS03-100J-RC

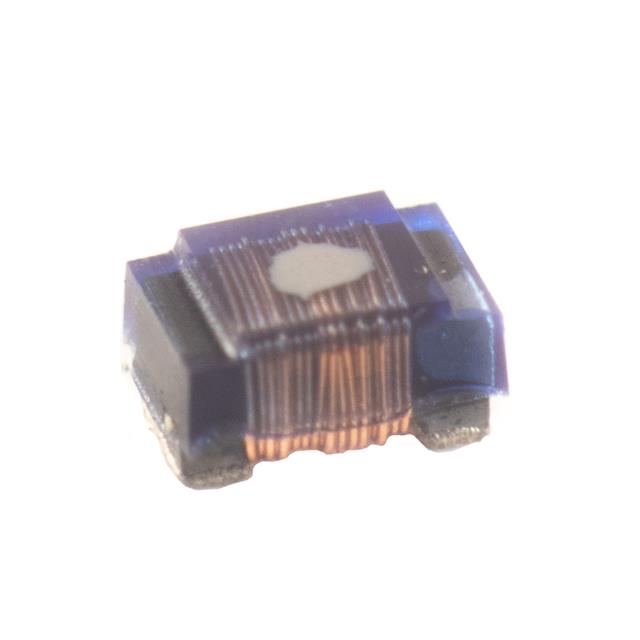

10 µH Unshielded Wirewound Inductor 4.8Ohm Max 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | LS03-100J-RC |
|---|---|
| Current - Saturation (Isat) | 0.3 mA |
| DC Resistance (DCR) (Max) | 4.8 Ohm |
| Frequency - Self Resonant | 40 MHz |
| Height - Seated (Max) | 0.04 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 7.9 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 0603 |
| Q | 19 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.071 in |
| Size / Dimension Width | 0.049 in |
| Tolerance | 5 % |
| Type | Wirewound |
