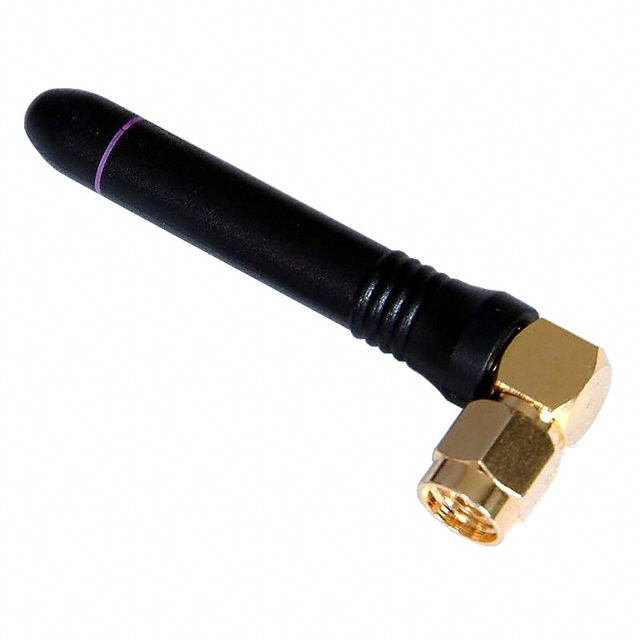

RN-SMA-RA
ObsoleteMicrochip Technology
RF ANT 2.4GHZ WHP RA SMA ML 2.5"
RN-SMA-RA
ObsoleteMicrochip Technology
RF ANT 2.4GHZ WHP RA SMA ML 2.5"
Description
General part information
RN-SMA-RA
2.4GHz Whip, Right Angle RF Antenna 2.2GHz ~ 2.7GHz -1.2dBi SMA Male Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | RN-SMA-RA |
|---|---|
| Antenna Type | Right Angle, Whip |
| Frequency (Center/Band) | 2.4 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.7 GHz |
| Frequency Range (Min) | 2.2 GHz |
| Gain | -1.2 dBi |
| Height (Max) | 2.106 in |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Termination Type | SMA Male |
| VSWR | 1.9 |
