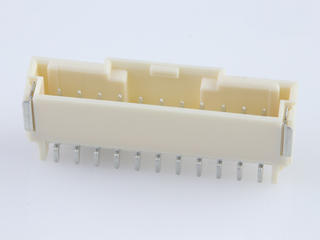

Specification	5023521100

Connector Type	Header
Contact Finish - Mating	Tin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.252 in
Insulation Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Surface Mount
Number of Positions	11
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.079 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder

502352 Series

Part	Insulation Height	Connector Type	Insulation Color	Number of Rows	Contact Finish - Mating	Number of Positions Loaded	Number of Positions	Mounting Type	Termination	Fastening Type	Material Flammability Rating	Insulation Material	Contact Shape	Contact Type	Shrouding	Pitch - Mating	Features	Style	Contact Material	Contact Length - Mating	Contact Finish - Post	Applications	Contact Finish Thickness - Post	Voltage Rating	Voltage Rating (Type)	Current Rating	Current Rating	Operating Temperature (Min)	Operating Temperature (Max)
Molex 5023521010	0.252 in	Header	Natural	1	Gold	All	10	Right Angle Surface Mount	Solder	Latch Holder	UL94 V-0	Nylon Polyamide (PA)	Square	Male Pin	Shrouded - 4 Wall	0.079 in	Solder Retention	Board Cable/Wire	Copper Alloy
Molex 5023520900	0.252 in	Header	Natural	1	Tin	All	9	Right Angle Surface Mount	Solder	Latch Holder	UL94 V-0	Nylon Polyamide (PA)	Square	Male Pin	Shrouded - 4 Wall	0.079 in	Solder Retention	Board Cable/Wire	Copper Alloy
Molex 5023520400	0.252 in	Header	Natural	1	Tin	All	4	Right Angle Surface Mount	Solder	Latch Lock	UL94 V-0	Nylon Polyamide (PA)	Square	Male Pin	Shrouded - 4 Wall	0.079 in	Solder Retention	Board Cable/Wire	Copper Alloy	0.136 in	Tin	Automotive Industrial
Molex 5023520603	0.252 in	Header	Blue	1	Tin	All	6	Right Angle Surface Mount	Solder	Latch Holder	UL94 V-0	Nylon Polyamide (PA)	Square	Male Pin	Shrouded - 4 Wall	0.079 in		Board Cable/Wire	Copper Alloy		Gold		39.4 µin	125 V	DC	0 A	Varies by Wire Gauge	-40 °C	105 °C
Molex 5023521510	0.252 in	Header	Natural	1	Gold	All	15	Right Angle Surface Mount	Solder	Latch Holder	UL94 V-0	Nylon Polyamide (PA)	Square	Male Pin	Shrouded - 4 Wall	0.079 in	Solder Retention	Board Cable/Wire	Copper Alloy			Automotive Industrial
Molex 5023520510	0.252 in	Header	Natural	1	Gold	All	5	Right Angle Surface Mount	Solder	Latch Holder	UL94 V-0	Nylon Polyamide (PA)	Square	Male Pin	Shrouded - 4 Wall	0.079 in	Solder Retention	Board Cable/Wire	Copper Alloy			Automotive Industrial
Molex 5023520810	0.252 in	Header	Natural	1	Gold	All	8	Right Angle Surface Mount	Solder	Latch Holder	UL94 V-0	Nylon Polyamide (PA)	Square	Male Pin	Shrouded - 4 Wall	0.079 in	Solder Retention	Board Cable/Wire	Copper Alloy			Automotive Industrial
Molex 5023520402	0.252 in	Header	Red	1	Tin	All	4	Surface Mount	Solder	Latch Holder	UL94 V-0	Nylon Polyamide (PA)	Square	Male Pin	Shrouded - 4 Wall	0.079 in		Board Cable/Wire	Copper Alloy		Gold		39.4 µin	125 V	DC	0 A	Varies by Wire Gauge	-40 °C	105 °C
Molex 5023521410	0.252 in	Header	Natural	1	Gold	All	14	Right Angle Surface Mount	Solder	Latch Holder	UL94 V-0	Nylon Polyamide (PA)	Square	Male Pin	Shrouded - 4 Wall	0.079 in	Solder Retention	Board Cable/Wire	Copper Alloy			Automotive Industrial
Molex 5023520300	0.252 in	Header	Natural	1	Tin	All	3	Right Angle Surface Mount	Solder	Latch Lock	UL94 V-0	Nylon Polyamide (PA)	Square	Male Pin	Shrouded - 4 Wall	0.079 in	Solder Retention	Board Cable/Wire	Copper Alloy	0.136 in	Tin
