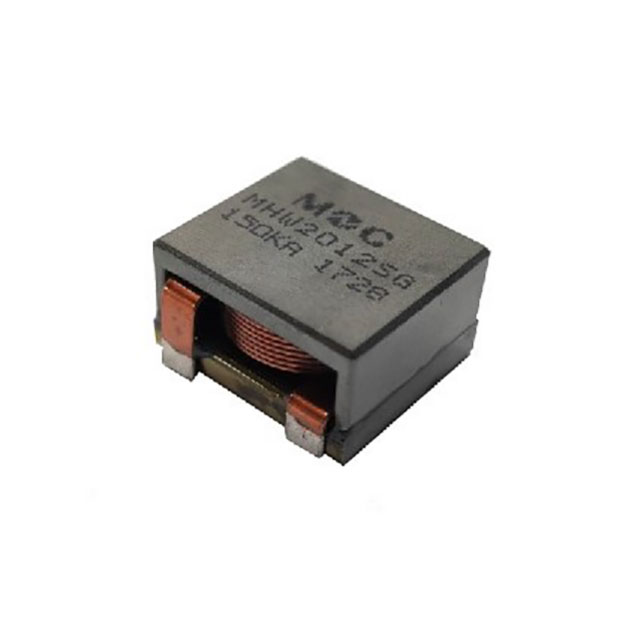

MHW2012SG150KA
ActiveMentech Technology USA Inc.
FIXED IND 15UH 10A 3.9 MOHM SMD
MHW2012SG150KA
ActiveMentech Technology USA Inc.
FIXED IND 15UH 10A 3.9 MOHM SMD
Description
General part information
MHW2012SG150KA
15 µH Planar Inductor 10 A 3.9mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | MHW2012SG150KA |
|---|---|
| Current - Saturation (Isat) | 15.3 A |
| Current Rating | 10 A |
| DC Resistance (DCR) (Max) | 3.9 mOhm |
| Height - Seated (Max) | 0.492 in |
| Inductance | 15 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Size / Dimension Length | 0.878 in |
| Size / Dimension Width | 0.866 in |
| Tolerance | 10 % |
| Type | Planar |
