2774091
ActivePhoenix Contact
CONN TERM BLK FEED THRU 10-26AWG
2774091
ActivePhoenix Contact
CONN TERM BLK FEED THRU 10-26AWG
Description
General part information
2774091

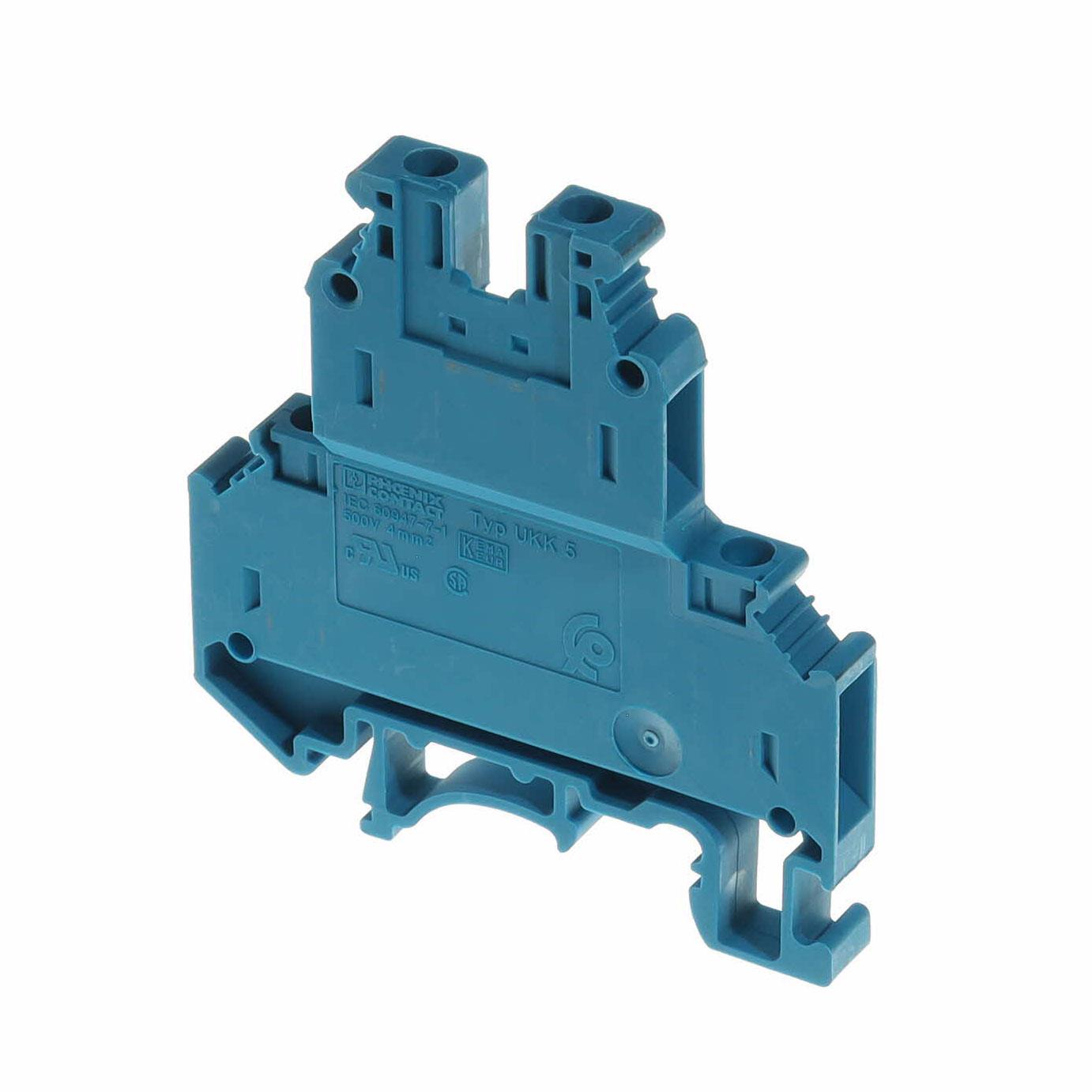

Terminal Block Connector 4 Position Feed Through Blue 10-26 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 2774091 |
|---|---|
| Color | Blue |
| Current - IEC | 32 A |
| Current - UL | 30 A |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 2 |
| Number of Positions | 4 |
| Stripping Length | 8 mm |
| Terminal Width | 6.2 mm |
| Termination Style | Screw |
| Type | Feed Through |
| Voltage - IEC | 500 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG (Max) | 25.5 AWG |
| Wire Gauge or Range - AWG (Min) | 10 AWG |
| Wire Gauge or Range - mm² (Maximum) | 4 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.2 mm² |
