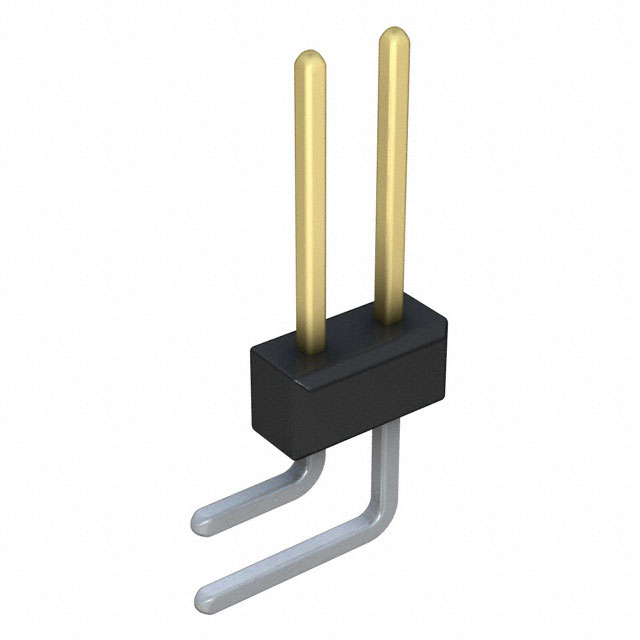

PBC01DGAN

Active

Sullins Connector Solutions

CONN HEADER R/A 2POS

Deep-Dive with AI

Search across all available documentation for this part.

PBC01DGAN

Active

Sullins Connector Solutions

CONN HEADER R/A 2POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBC01DGAN

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.24 in
Insulation Height	6.1 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PBC01 Series

Part	Current Rating (Amps)	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Termination	Number of Positions Loaded	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Insulation Material	Contact Type	Connector Type	Contact Finish - Post	Shrouding	Number of Positions	Style	Insulation Height	Insulation Height	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Overall Contact Length
Sullins Connector Solutions PBC01DGAN	3 A	Black	2.54 µm	100 µin	Square	2.54 mm	0.1 in	Phosphor Bronze	Solder	All	UL94 V-0	10 çin	0.25 çm	Through Hole Right Angle	2	125 °C	-65 ░C	Push-Pull	Gold	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	Male Pin	Breakaway Header	Tin	Unshrouded	2	Board to Board Cable	0.24 in	6.1 mm	0.318 "	8.08 mm
Sullins Connector Solutions PBC01DFCN	3 A	Black	2.54 µm	100 µin	Square	2.54 mm	0.1 in	Phosphor Bronze	Solder	All	UL94 V-0	10 çin	0.25 çm	Through Hole	2	125 °C	-65 ░C	Push-Pull	Gold			Polybutylene Terephthalate (PBT)	Male Pin	Breakaway Header	Tin	Unshrouded	2	Board to Board Cable	0.1 in	2.54 mm	0.318 "	8.08 mm	0.32 in	8.13 mm	0.738 "	18.75 mm
Sullins Connector Solutions PBC01SGBN	3 A	Black	2.54 µm	100 µin	Square			Phosphor Bronze	Solder	All	UL94 V-0	10 çin	0.25 çm	Through Hole Right Angle	1	125 °C	-65 ░C	Push-Pull	Gold			Polybutylene Terephthalate (PBT)	Male Pin	Breakaway Header	Tin	Unshrouded	1	Board to Board Cable	0.14 in	3.56 mm	0.318 "	8.08 mm	0.2 in	5.08 mm
Sullins Connector Solutions PBC01DFBN	3 A	Black	2.54 µm	100 µin	Square	2.54 mm	0.1 in	Phosphor Bronze	Solder	All	UL94 V-0	10 çin	0.25 çm	Through Hole	2	125 °C	-65 ░C	Push-Pull	Gold	5.58 mm	0.22 in	Polybutylene Terephthalate (PBT)	Male Pin	Breakaway Header	Tin	Unshrouded	2	Board to Board Cable	0.1 in	2.54 mm	0.318 "	8.08 mm			0.638 in	16.21 mm
Sullins Connector Solutions PBC01DAHN	3 A	Black	2.54 µm	100 µin	Square	2.54 mm	0.1 in	Phosphor Bronze	Solder	All	UL94 V-0	10 çin	0.25 çm	Through Hole	2	125 °C	-65 ░C	Push-Pull	Gold			Polybutylene Terephthalate (PBT)	Male Pin	Breakaway Header	Tin	Unshrouded	2	Board to Board Cable	0.1 in	2.54 mm	0.23 in		0.82 in	20.83 mm	1.15 in	29.21 mm	5.84 mm
Sullins Connector Solutions PBC01SAFN	3 A	Black	2.54 µm	100 µin	Square			Phosphor Bronze	Solder	All	UL94 V-0	10 çin	0.25 çm	Through Hole	1	125 °C	-65 ░C	Push-Pull	Gold	15.75 mm	0.62 in	Polybutylene Terephthalate (PBT)	Male Pin	Breakaway Header	Tin	Unshrouded	1	Board to Board Cable	0.1 in	2.54 mm	0.23 in				0.95 in	24.13 mm	5.84 mm
Sullins Connector Solutions PBC01SFBN	3 A	Black	2.54 µm	100 µin	Square			Phosphor Bronze	Solder	All	UL94 V-0	10 çin	0.25 çm	Through Hole	1	125 °C	-65 ░C	Push-Pull	Gold	5.58 mm	0.22 in	Polybutylene Terephthalate (PBT)	Male Pin	Breakaway Header	Tin	Unshrouded	1	Board to Board Cable	0.1 in	2.54 mm	0.318 "	8.08 mm			0.638 in	16.21 mm
Sullins Connector Solutions PBC01DAAN	3 A	Black	2.54 µm	100 µin	Square	2.54 mm	0.1 in	Phosphor Bronze	Solder	All	UL94 V-0	10 çin	0.25 çm	Through Hole	2	125 °C	-65 ░C	Push-Pull	Gold			Polybutylene Terephthalate (PBT)	Male Pin	Breakaway Header	Tin	Unshrouded	2	Board to Board Cable	0.1 in	2.54 mm	0.23 in		0.12 in	3.05 mm	0.45 "	11.43 mm	5.84 mm
Sullins Connector Solutions PBC01SAAN	3 A	Black	2.54 µm	100 µin	Square			Phosphor Bronze	Solder	All	UL94 V-0	10 çin	0.25 çm	Through Hole	1	125 °C	-65 ░C	Push-Pull	Gold			Polybutylene Terephthalate (PBT)	Male Pin	Breakaway Header	Tin	Unshrouded	1	Board to Board Cable	0.1 in	2.54 mm	0.23 in		0.12 in	3.05 mm	0.45 "	11.43 mm	5.84 mm
Sullins Connector Solutions PBC01DACN	3 A	Black	2.54 µm	100 µin	Square	2.54 mm	0.1 in	Phosphor Bronze	Solder	All	UL94 V-0	10 çin	0.25 çm	Through Hole	2	125 °C	-65 ░C	Push-Pull	Gold			Polybutylene Terephthalate (PBT)	Male Pin	Breakaway Header	Tin	Unshrouded	2	Board to Board Cable	0.1 in	2.54 mm	0.23 in		0.32 in	8.13 mm		0.65 in	5.84 mm	16.51 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.66
		10	$ 0.50
		100	$ 0.39
		500	$ 0.32
		1000	$ 0.30
		5000	$ 0.25
		10000	$ 0.25

Description

General part information

PBC01 Series

Connector Header Through Hole, Right Angle 2 position

Documents

Technical documentation and resources

No documents available
