9802 010500

Active

Belden Inc.

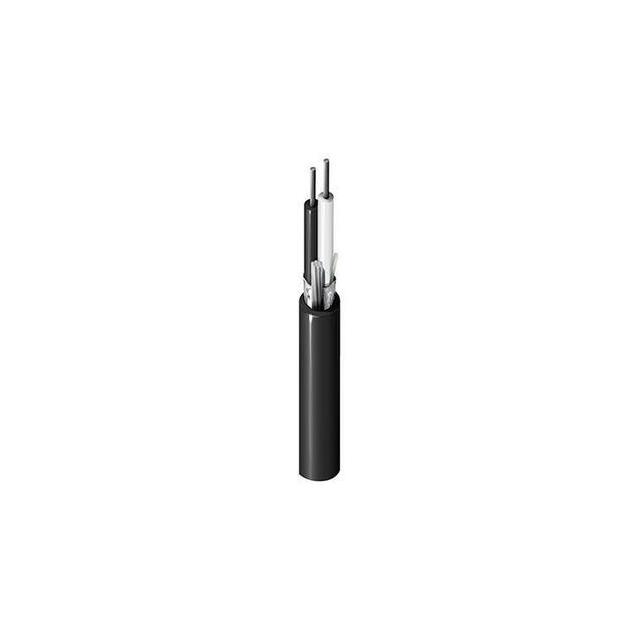

CABLE 2COND 20AWG BLK SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 20AWG BLK SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	9802 010500

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand	Solid
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	4.83 mm
Jacket (Insulation) Diameter [diameter]	0.19 in
Jacket (Insulation) Material	High Density Polyethylene (HDPE)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Black
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Wire Gauge	20 AWG

Part	Wire Gauge	Length [x]	Length [x]	Usage	Features	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Number of Conductors	Conductor Material	Jacket Color	Conductor Strand	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Cable Type	Shield Material	Shield Coverage	Shield Type
Belden Inc. 9802 010500	20 AWG	500 '	152.4 m	Audio Control Instrumentation	Drain Wire	-40 °C	80 C	Polypropylene (PP)	2	Copper Tinned	Black	Solid	4.83 mm	0.19 in	0.889 mm	0.035 in	High Density Polyethylene (HDPE)	Multi-Conductor	Aluminum	100 %	Foil

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 1.68

General part information

2 Conductor Multi-Conductor Cable Black 20 AWG Foil 500.0' (152.4m)
