AAT4282AIPS-3-T1

Obsolete

Skyworks Solutions Inc.

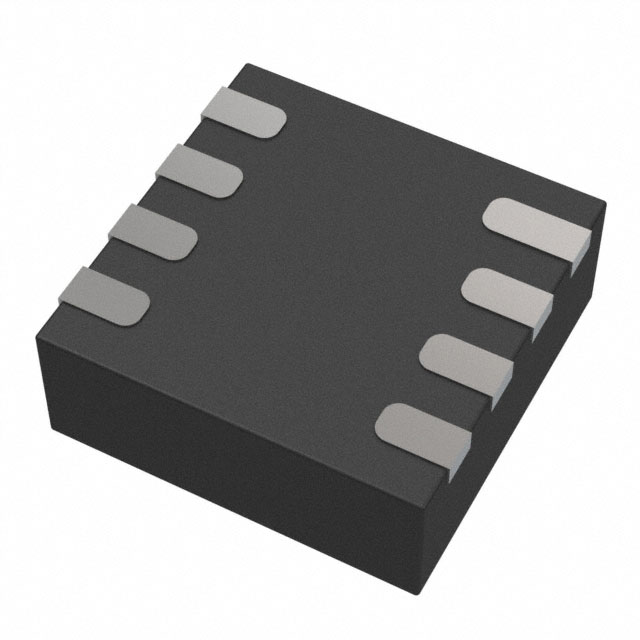

IC PWR SWITCH P-CHAN 1:1 8FTDFN

Search across all available documentation for this part.

Obsolete

Skyworks Solutions Inc.

IC PWR SWITCH P-CHAN 1:1 8FTDFN

Technical Specifications

Parameters and characteristics for this part

Specification	AAT4282AIPS-3-T1

Current - Output (Max) [Max]	3 A
Features	Slew Rate Controlled, Load Discharge
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	P-Channel
Package / Case	8-WFDFN
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	56 mOhm
Supplier Device Package	8-FTDFN (2x2)
Switch Type	General Purpose
Voltage - Load [Max]	6.5 V
Voltage - Load [Min]	1.5 V
Voltage - Supply (Vcc/Vdd)	False

Part	Voltage - Load [Max]	Voltage - Load [Min]	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Supplier Device Package	Features	Output Type	Input Type	Ratio - Input:Output [custom]	Current - Output (Max) [Max]	Interface	Output Configuration	Switch Type	Rds On (Typ)	Voltage - Supply (Vcc/Vdd)
Skyworks Solutions Inc. AAT4282AIPS-3-T1	6.5 V	1.5 V	8-WFDFN	Surface Mount	85 °C	-40 °C	2	8-FTDFN (2x2)	Load Discharge Slew Rate Controlled	P-Channel	Non-Inverting	1:1	3 A	On/Off	High Side	General Purpose	56 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Switch/Driver 1:1 P-Channel 3A 8-FTDFN (2x2)
