F709098200
ActiveRadiall USA, Inc.
ST PLUG MM128UM FOR CABLE 2,7MM
F709098200
ActiveRadiall USA, Inc.
ST PLUG MM128UM FOR CABLE 2,7MM
Description
General part information
F709098200

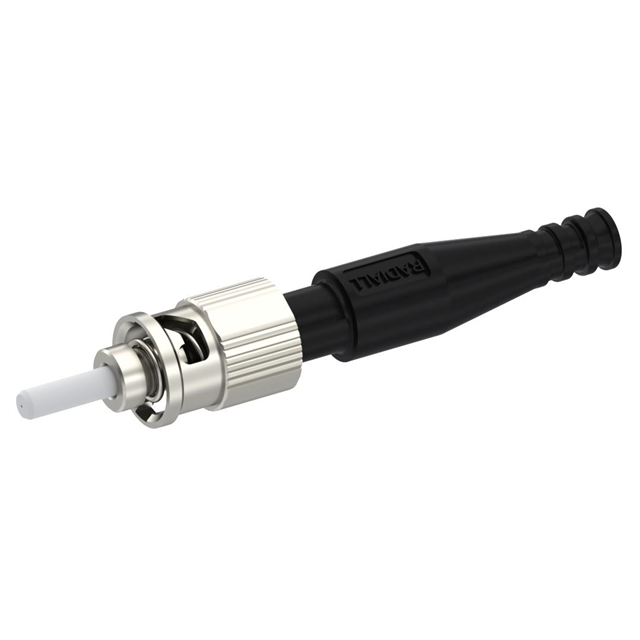

Fiber Optic Plug Connector ST Simplex 125µm Silver
Technical Specifications
Parameters and characteristics for this part
| Specification | F709098200 |
|---|---|
| Attenuation (Typical) | -0.25 dB |
| Body Material | Brass |
| Boot Color | Black |
| Cable Diameter | 3 mm |
| Connector Style | ST |
| Connector Type | Plug |
| Fastening Type | Bayonet Lock |
| Features | Strain Relief |
| Ferrule Material | Zirconia, Ceramic |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 62.5 µm |
| Housing Color | Silver |
| Mating Cycles | 500 cycles |
| Mode | Multimode |
| Mounting Type | Free Hanging (In-Line) |
| Reflection | -30 dB |
| Simplex/Duplex | Simplex |
