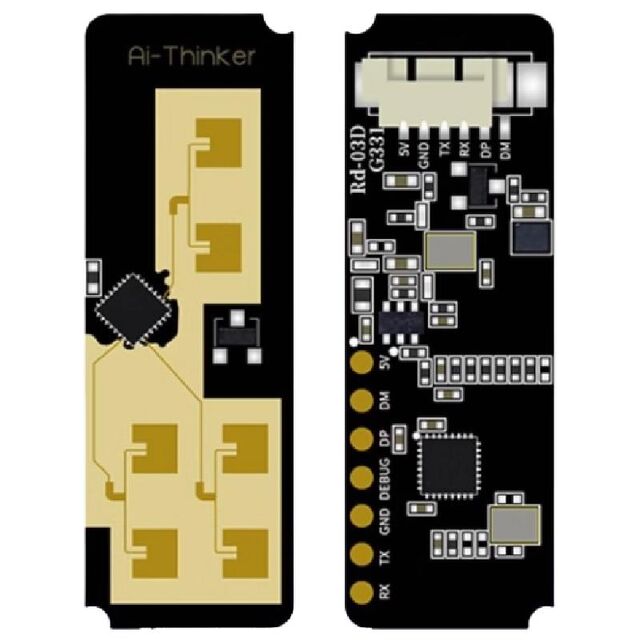

RD-03D
ActiveAi-Thinker
24GHZ RADARS5KM312CL
RD-03D
ActiveAi-Thinker
24GHZ RADARS5KM312CL
Description
General part information
RD-03D
General ISM > 1GHz ISM Transceiver Module 24GHz ~ 24.25GHz PCB Trace Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | RD-03D |
|---|---|
| Antenna Type | PCB Trace |
| Data Rate | 256 Kbps |
| Frequency (Max) | 24.25 GHz |
| Frequency (Min) | 24 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-SMD Module |
| Protocol | ISM |
| RF Family/Standard | General ISM > 1GHz |
| Serial Interfaces | UART |
| Utilized IC / Part | S5KM312CL |
| Voltage - Supply | 5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
